NOTE: Each power supply must be connected to a dedicated AC power feed and a
dedicated customer-site 2-pole circuit breaker. We recommend that you use a dedicated
customer-site circuit breaker rated for 20 A (110 VAC) or 16 A (220 VAC) minimum, or
as required by local code.
4. Push the end of the AC power cord retainer strip into the hole next to the inlet on the power supply
faceplate on the router until it snaps into place. Ensure that the loop in the retainer strip faces toward
the power cord.
Figure 62 on page 99 shows the port on the AC PSM for ACX5448 router where the power cord
retainer is installed.

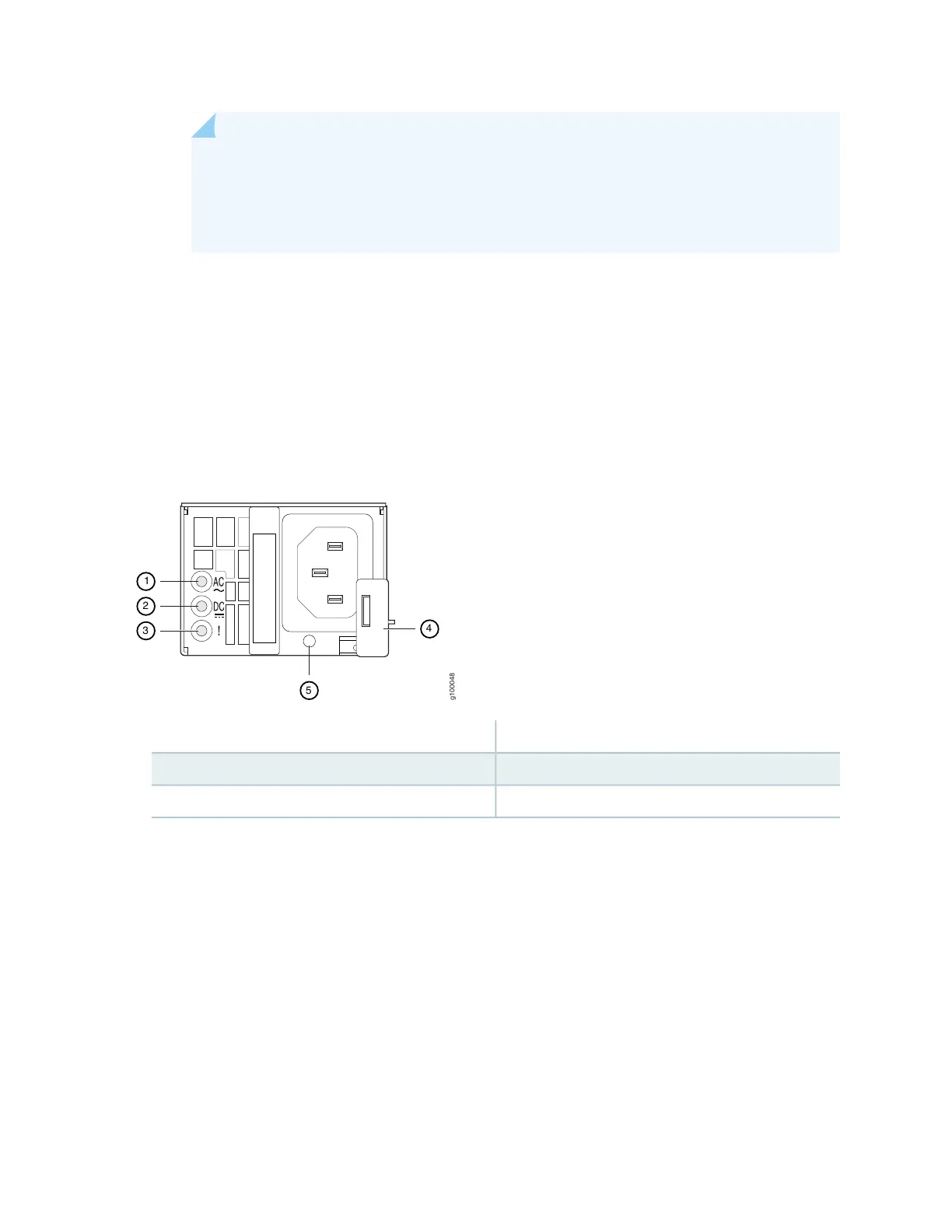

Figure 62: Power Cord Retainer Port on the AC PSM
4—1— Ejector leverInput status LED
5—2— AC power cord retainer portOutput status LED
3—Fault LED
Figure 63 on page 100 shows the power cord retainer installed on the AC PSM for ACX5448 router.
