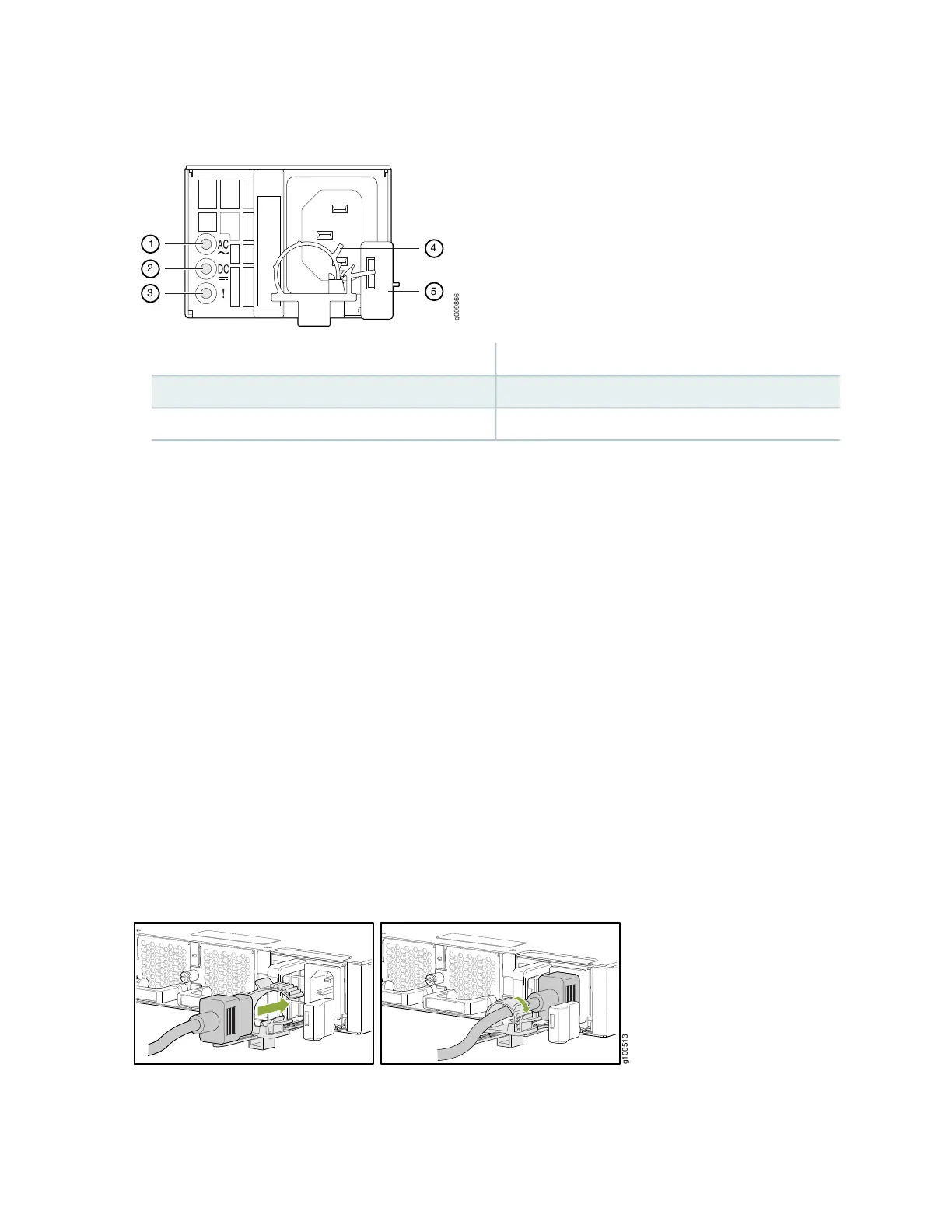

Figure 63: Power Cord Retainer Installed on the AC PSM for ACX5448
g009866
1
2
3
5
4
4—1— AC power cord retainer installedInput status LED
5—2— Ejector leverOutput status LED
3—Fault LED
5. Press the small tab on the retainer strip to loosen the loop. Slide the loop until you have enough space
to insert the power cord coupler into the inlet.
6. Insert the power cord coupler firmly into the inlet.
7. Slide the loop toward the PSM until it is snug against the base of the coupler.
8. Press the tab on the loop and draw out the loop into a tight circle (see Figure 64 on page 100).
9. Route the power cord appropriately. Verify that the power cord does not block the air exhaust and
access to router components, or drape where people could trip over it.
10. Power on the source power supply.
11. Repeat Step 3 through Step 9 for the installing the remaining PSM.
Figure 64: Connect an AC Power Cord to an ACX5448
g100513
To connect AC power to ACX5448-D and ACX5448-M routers:
