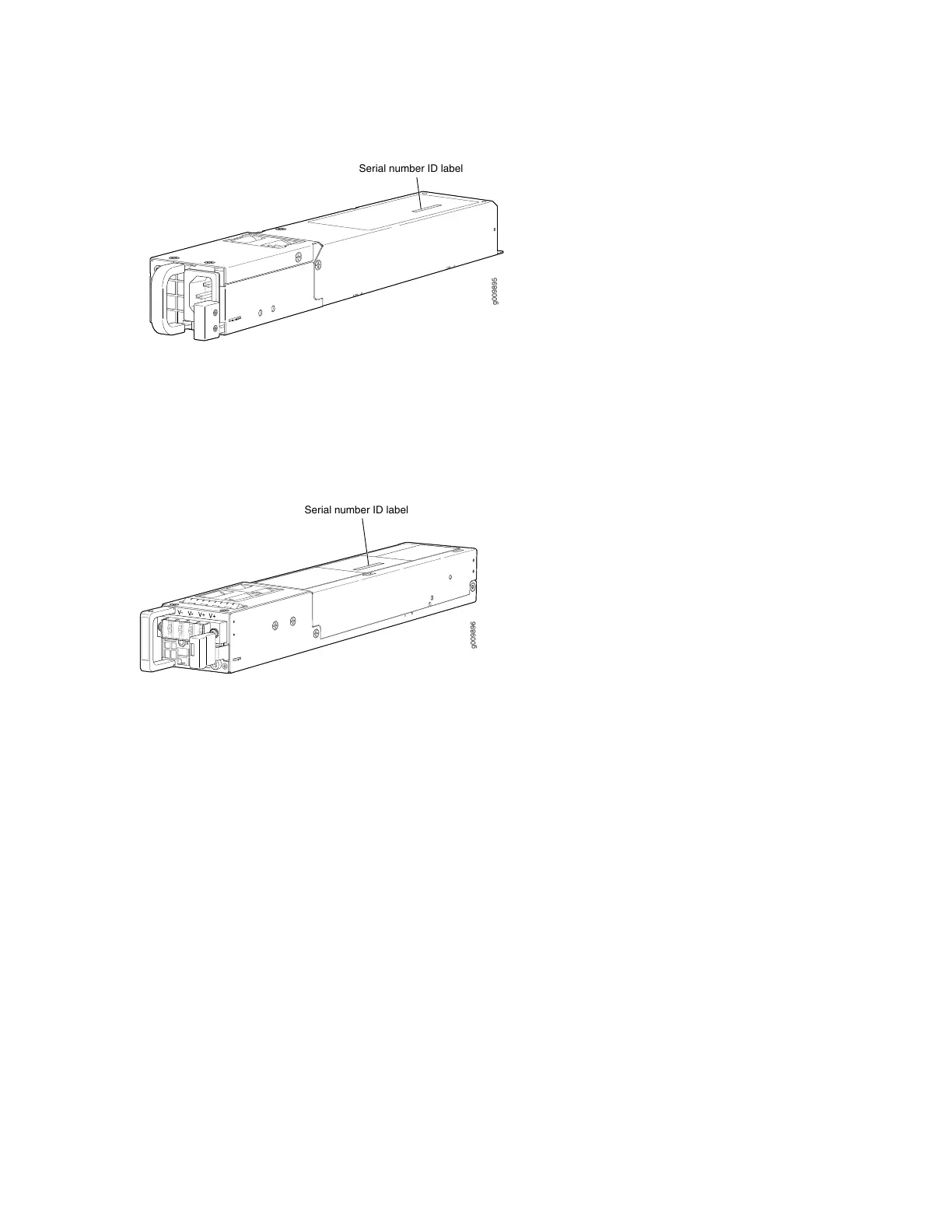

Figure 56: MX204 AC Power Supply Serial Number Location
g009895
Serial number ID label
•
DC power supply—The serial number ID label is on the top of the DC power supply. See
Figure 57 on page 141.
Figure 57: MX204 DC Power Supply Serial Number Location
g009896
Serial number ID label
Locating the Serial Number ID Label on an MX204 Fan Module
The fan modules installed in an MX204 are field-replaceable units (FRUs). For each FRU, you must remove
the FRU from the router chassis to see the FRU serial number ID label.
Fan module–The serial number ID label is located at the base of the fan module. See Figure 58 on page 142.
141
