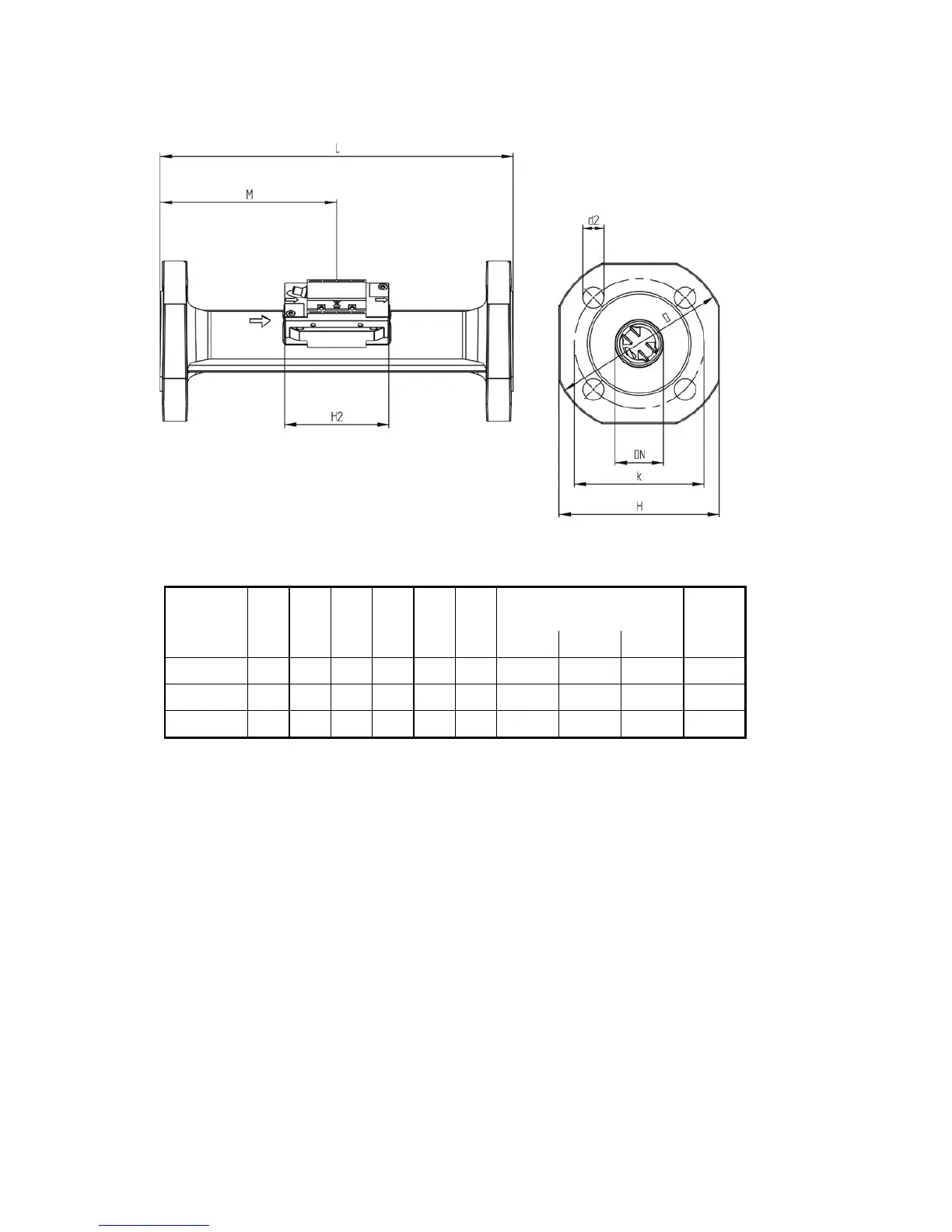

Figure 5: Flow sensor with DN25 to DN50 flange connection
Nom. Bolts
Approx.
weight
diameter L M H2 D H k
Quantity
Thread d2
[
kgs.
]
DN25 260 L/2 92.5 115 106 85 4 M12 14 5.6
DN40 300 L/2 92.5 150 136 110 4 M16 18 8.9
DN50 270 155 92.5 165 145 125 4 M16 18 10.7
Table 4: Weight is inclusive of 3 m sensor set, but exclusive of packing
