NOTE:
If the axis controllers are supplied by the PSU, situations may occur which
render the mains input lter ineffective. The use of a common-mode lter in the
DC link supply of the axis controllers is an effective remedy here. For detailed
information on the use of common-mode lters, see Chapter 4.2.5 or refer to
the Mounting instruction Common Mode Filter CMR (ID no.: 1101.13B.x).
H
B
T
A
C
Ø G PE

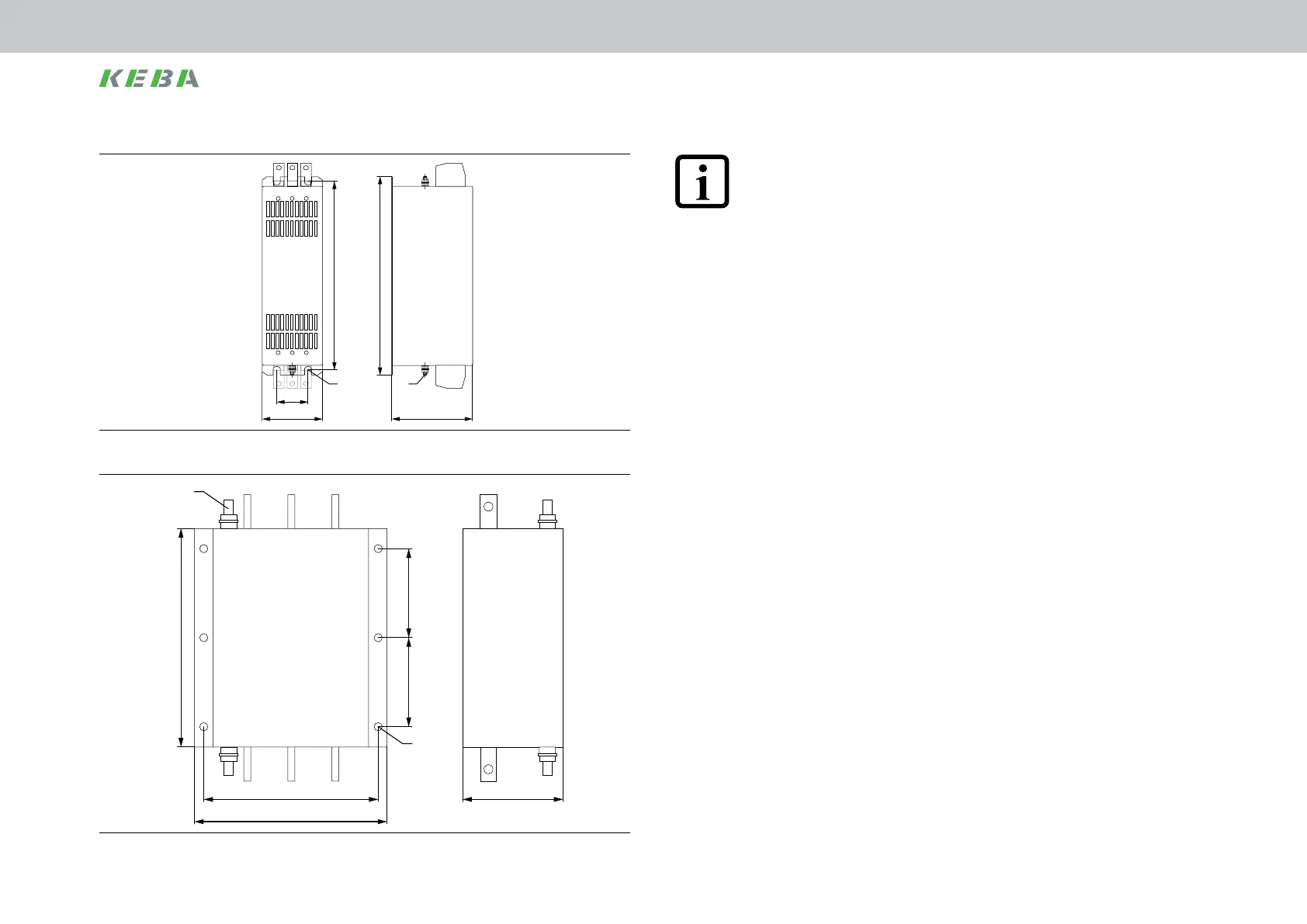

Figure 3.20 Dimensional drawing, mains lter for BG5 and BG6a (Fig. differs from the original)
H
B
A T
C
C
Ø G
PE
Figure 3.21 Dimensional drawing, mains lter for BG7 (Fig. differs from the original)
Mechanical installation
