Front Hydraulic Brake
A
Front brake disc diameter：260mm
B
Front brake disc thickness：4.0mm
Service limit：3.0
C
Brake shoe thickness：4 mm
Service limit：3mm
D
Mounting torque for Bolt 7 in the diagram：
22-29 N·m

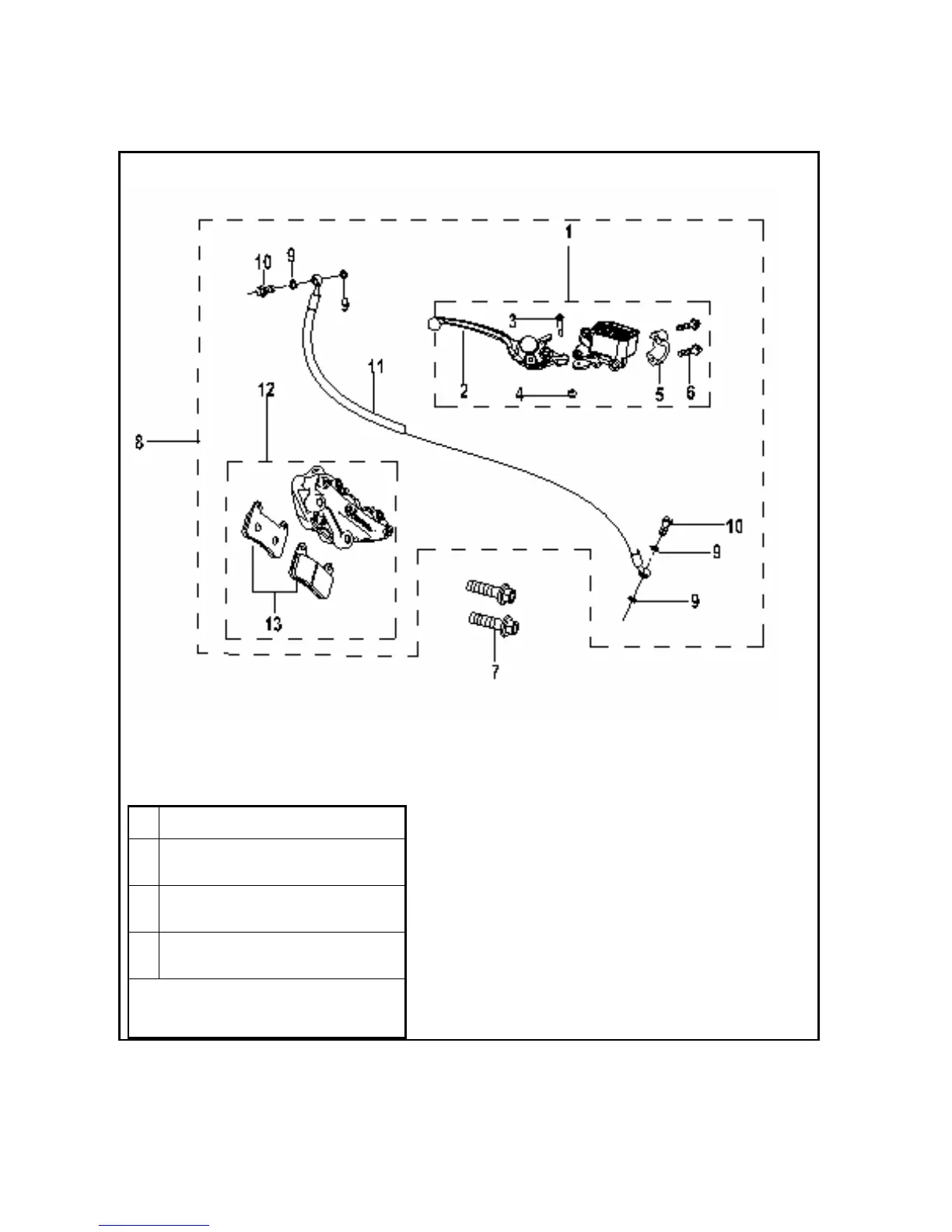

1 Oil pump block assembly 2 Hydraulic brake handle 3 Handle mounting bolt 4 Nut M6 5 Fixing cover
6 Bolt M6×23 7 Front hydraulic brake mounting bolt 8 Front hydraulic brake assembly 9 Washer
10 Oil hose mounting bolt 11 Brake hose assembly 12 Brake cylinder assembly 13 Brake shoe assembly
