Rear Hydraulic Brake
A
Rear brake disc diameter240mm
B
Rear brake disc thickness5.0mm
Service limit4.0
C
Brake shoe thickness5mm
Service limit4mm
D
Mounting torque for Bolt 7 in the diagram22-29 m

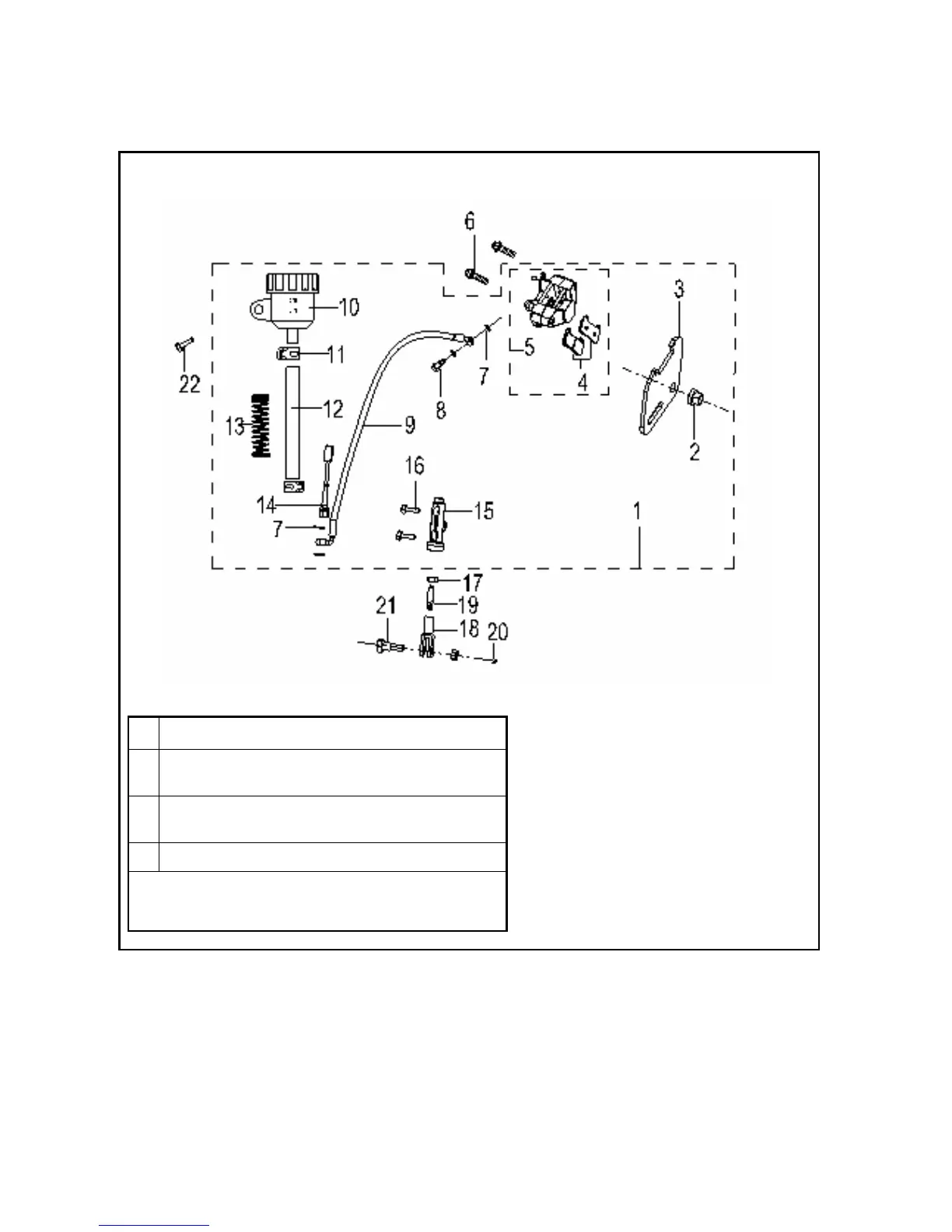

1 Rear hydraulic brake assembly 2 Bushing 3 Bracket 4 Friction disc assembly 5 Brake cylinder assembly
6 Bolt M8×16 7 Sealing ring 8 Hex. Flange head bolt 9 Brake hose assembly 10 Oil cup assembly
11 Collar 12 Oil hose 13 Protecting spring 14Brake switch assembly 15 Oil pump block assembly
16 Bolt M6×20 17 Nut M6 18 Lever 19 Draw-bar 20 Cotter pin 2.5×25 21 Mounting bolt 22 Bolt M6×12
