Keithley 4200A-SCS User Manual

Section 5: KPulse (for Keithley Pulse Cards) Model 4200A-SCS Pulse Card (PGU and PMU) User's Manual
5-6 4200A-PMU-900-01 Rev. A December 2020

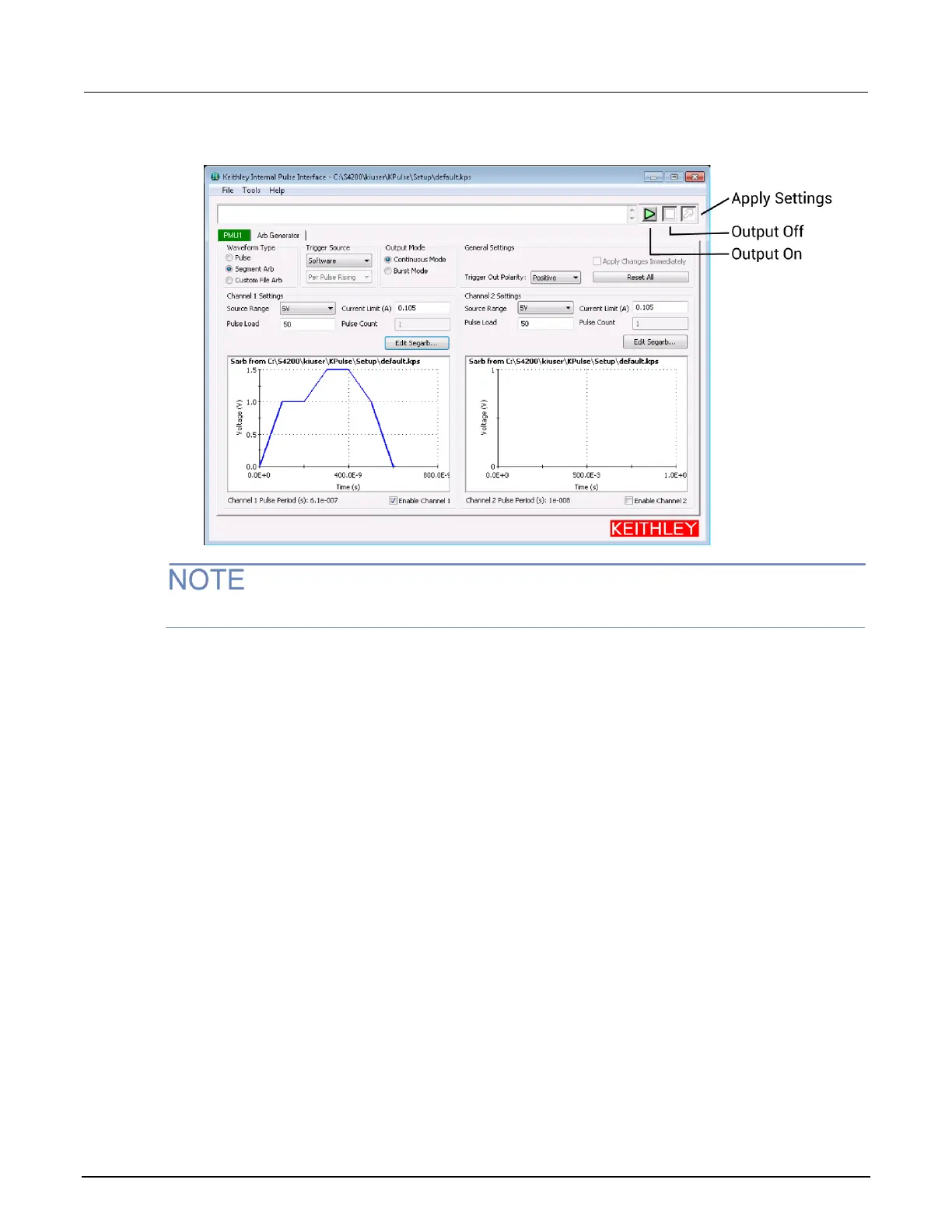

Figure 103: Segment Arb waveform settings
The output trigger levels are not shown in the waveform previewers.
The following instructions describe how to use KPulse for a standard pulse output. Repeat these
steps for any installed cards that you want to set to standard pulse.
To set waveform, trigger, output, and general settings:
1. Select the pulse card tab (in this example, PMU1).
2. For the Waveform Type, select Segment Arb.
3. For the Trigger Source, select External.
4. Select the Trigger Source type - Per Pulse Rising, Initial Falling, Initial Rising, or Per Pulse
Falling.
5. For the Output Mode, select Continuous Mode or Burst Mode.
6. Under General Settings, set the Pulse Period in seconds.
7. Set the Trigger Polarity to Positive or Negative.
8. Select how to apply the changes by doing one of the following:
▪ Select Apply Changes Immediately to enable automatic update for pulse output. After the
outputs are turned on, the pulse output updates immediately when the settings are changed.
▪ Select Apply Settings (the button with the light blue arrow) to manually apply settings.
