Model 4200A-SCS Pulse Card (PGU and PMU) User's Manual Section 2: Connections
4200A-PMU-900-01 Rev. A December 2020 2-27
Enable LLEC
This option is available for ITMs.
To enable LLEC:
1. Select the pulse test.
2. Select Configure.
3. In the right pane, select Terminal Settings.
4. Select Advanced.
5. Select Load Line Effect, as shown in the following figure.
6. Select OK.

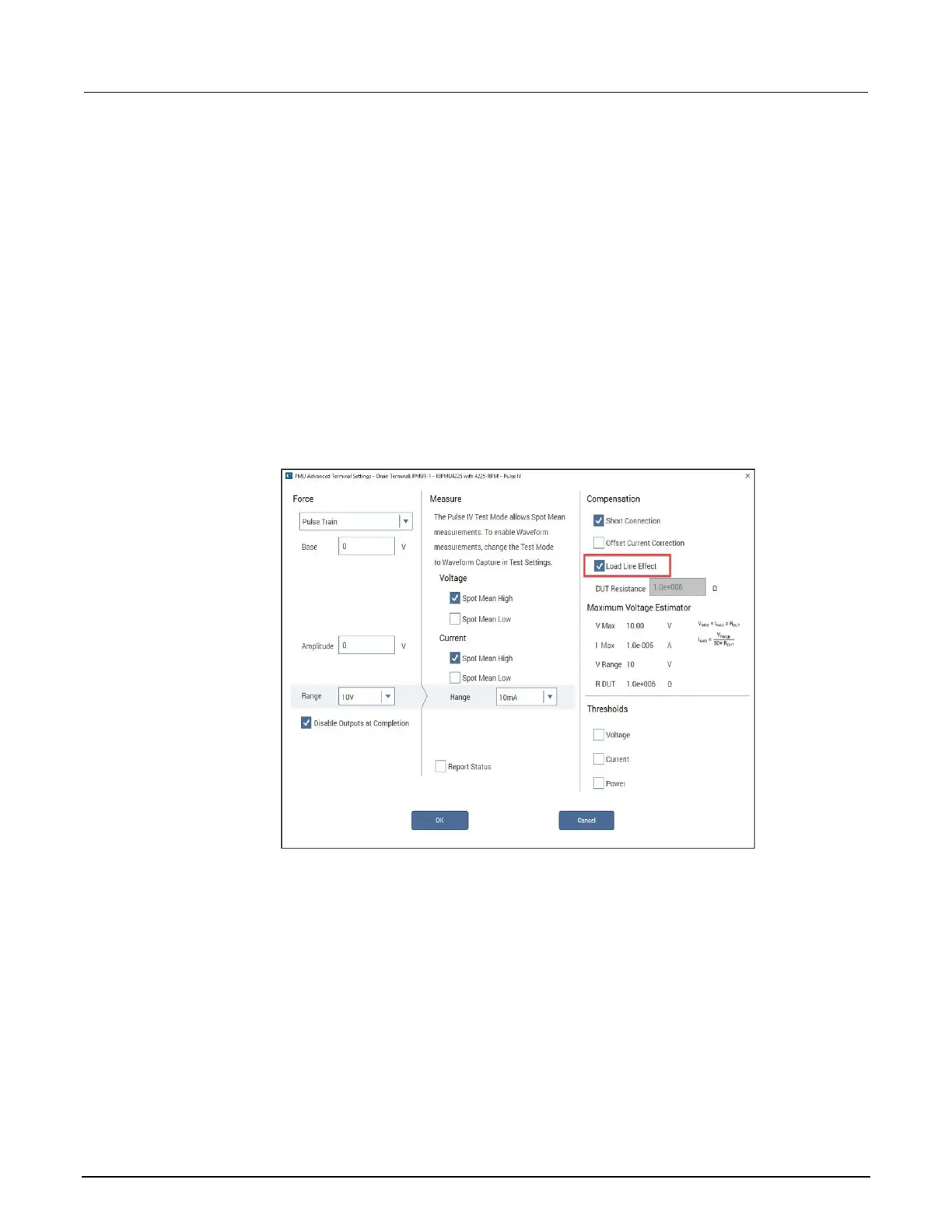

Figure 25: Enabling LLEC
