Keithley 4200A-SCS User Manual

Section 3: Setting up PMUs and PGUs in Clarius Model 4200A-SCS Pulse Card (PGU and PMU) User's Manual
3-2 4200A-PMU-900-01 Rev. A December 2020
Create a PMU project
To create a new project:
1. Select Save to save your existing project.
2. Choose Select.
3. Select the Projects tab.
4. In the Search box, type PMU and select Search. The Library displays projects that are set up
for PMUs.
5. Select Create for the project you want to open. The project replaces the previous project in the
project tree.

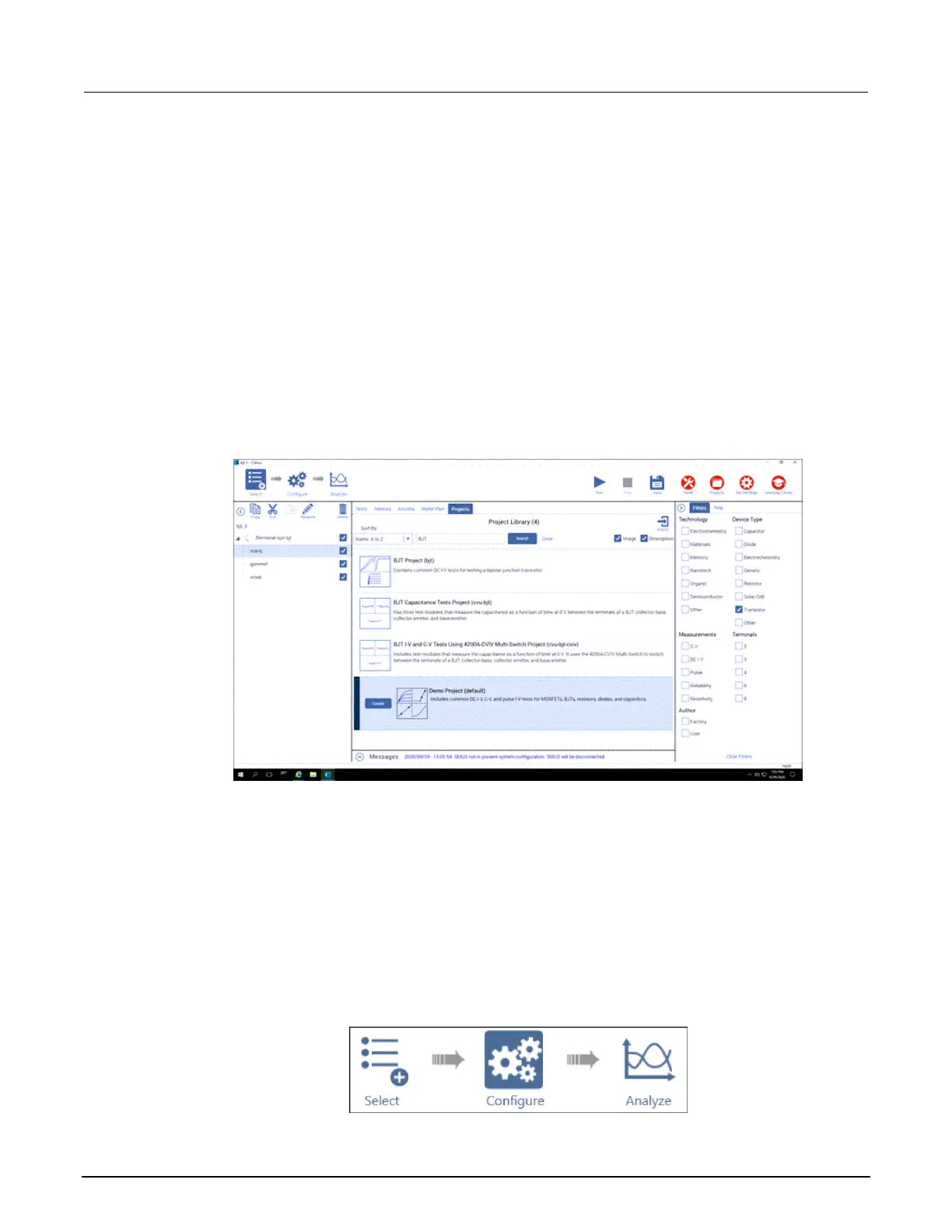

Figure 26: Filter and search for the bjt project
6. Assign a new title to the project by selecting Rename and then entering and appropriate name.
7. Select Enter.
Configure the tests
To configure a test:
1. Select Configure.
Figure 27: Configure button highlighted
