Model 4200A-SCS Pulse Card (PGU and PMU) User's Manual Section 6: Use the RPM to switch the SMU, CVU, and PMU
4200A-PMU-900-01 Rev. A December 2020 6-5
Set up the measurements in Clarius
This section describes how to set up the 4200A-SCS to make I-V, C-V, and pulsed I-V measurements
on a diode. You will create a new project and add a test to the project tree for each measurement
type.
For this example, you use the Clarius application to:
• Create a new project
• Add a device
• Search for and select existing tests in the Test Library
• Configure the tests
• Run the tests
• View and analyze the test results
Create a new project
To create a new project:
1. Choose Select.

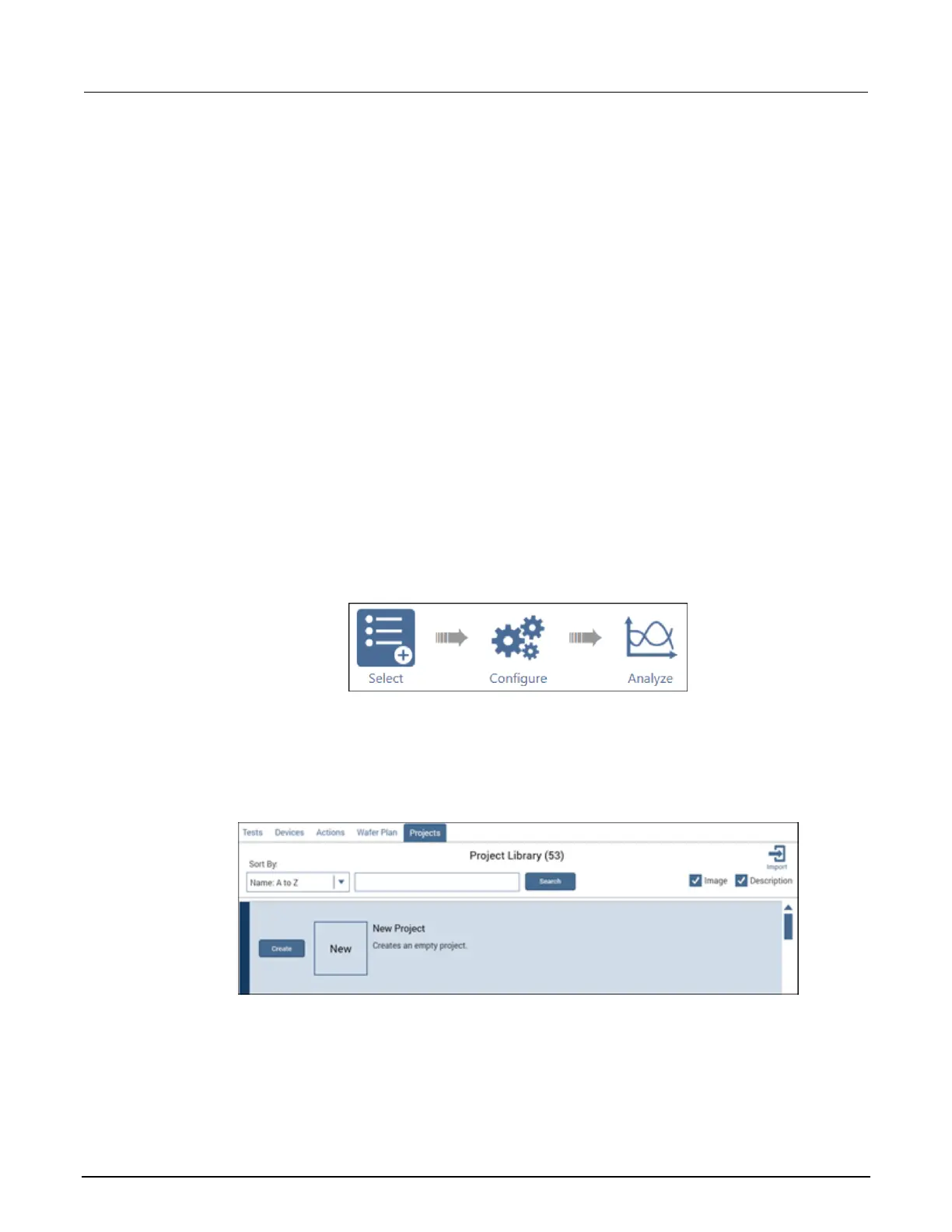

Figure 122: Select highlighted
2. In the Library, select Projects.
3. Select New Project.
4. Select Create.
Figure 123: Select a New Project from the Project Library
5. Select Yes when prompted to replace the existing project.
6. Select Rename to assign a new title to the project.
7. Enter Diode Test.
8. Select Enter.
