Model 4200A-SCS Pulse Card (PGU and PMU) User's Manual Section 7: PMU for pulsed I-V measurements on a MOSFET
4200A-PMU-900-01 Rev. A December 2020 7-5
2. In the Library, select Projects.
3. Select New Project.
4. Select Create.

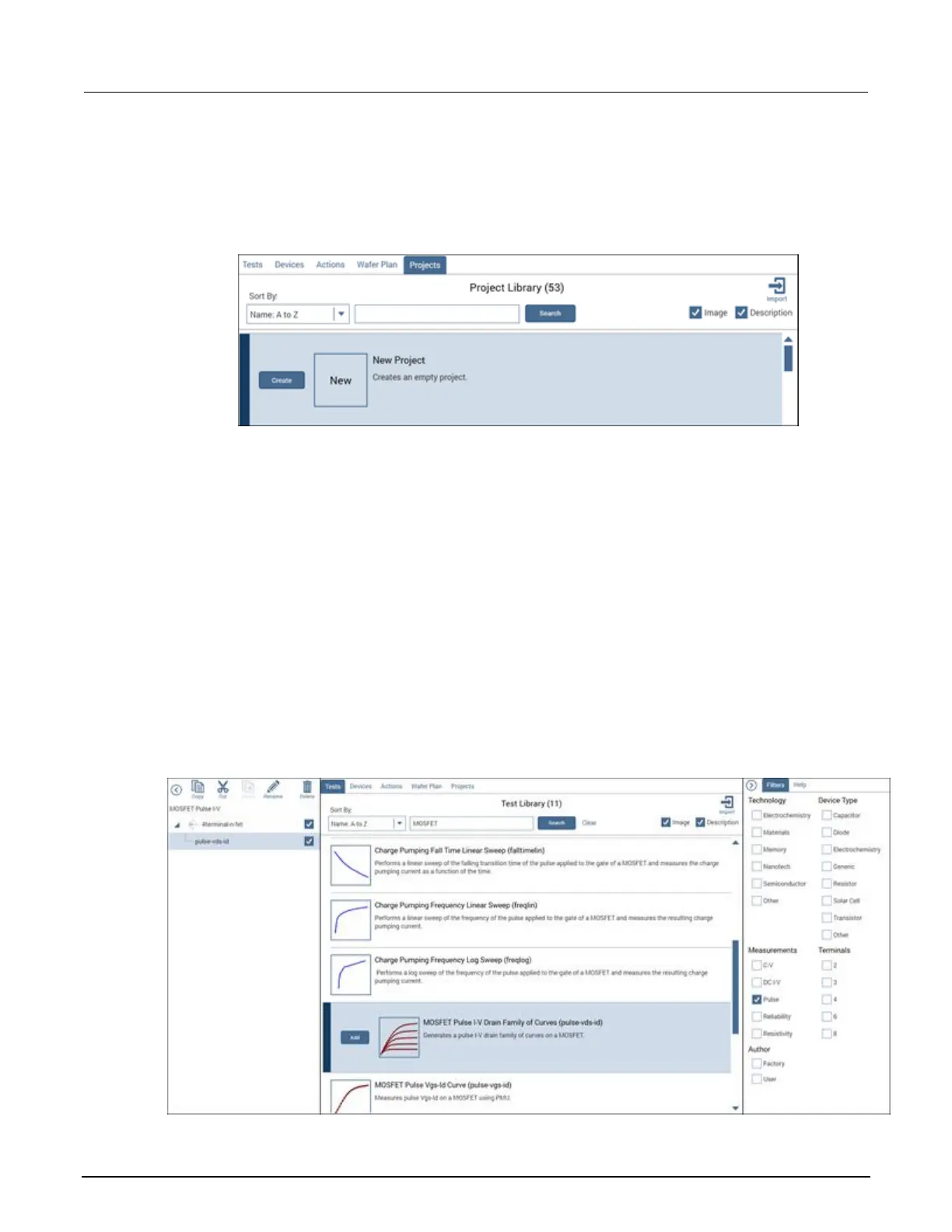

Figure 145: Select a New Project from the Project Library
5. Select Yes when prompted to replace the existing project.
6. Assign a new title to the project by selecting Rename and then entering MOSFET Pulse I-V.
7. Select Enter.
Search for and select an existing test
To search for and select an existing test:
1. Select Tests.
2. Type MOSFET into the search bar, then select Pulse in the Filters pane under Measurements.
3. Select the MOSFET Pulse I-V Drain Family of Curves (pulse-vds-id) test, then Add it to the
project tree. Notice that the device is automatically added.
Figure 146: Selecting the MOSFET Pulse I-V Drain Family of Curves test from the Test library
