Select Reset All to return the pulse card to the Standard Pulse waveform type and its default
settings. It also updates the previewer.
To configure the Channel 1 and Channel 2 settings:
1. Configure the channel settings as needed. Note that the Pulse Count field is only available if the
Output Mode is set to Burst Mode.
2. At the bottom of the window, select Enable Channel 1 or Enable Channel 2. A channel must be
enabled to preview its waveform and turn on the output for the channel.
3. Select Edit Segarb.
4. For each segment, enter the Start voltage, Stop voltage, Time in seconds, the TTL output Trig
level (0 = low; 1 = high), and the state of the SSR (solid-state relay, 0 = open, 1 = closed).
5. Select OK.
6. Select the Output On button to turn on all enabled channels for all pulse cards installed on the
4200A-SCS. Output Off turns red.
7. To turn off the output, select Output Off.
Exporting Segment Arb waveform files
After configuring a Segment Arb
®
waveform in KPulse, you can save it as a .ksf file. The Segment
Arb .ksf files should be exported into the SarbFiles folder at the following location:
C:\s4200\kiuser\KPulse\SarbFiles
To export a Segment Arb waveform file:
1. Select Tools.
2. Select Export Segment Arb to open the Segment Arb Export dialog box.

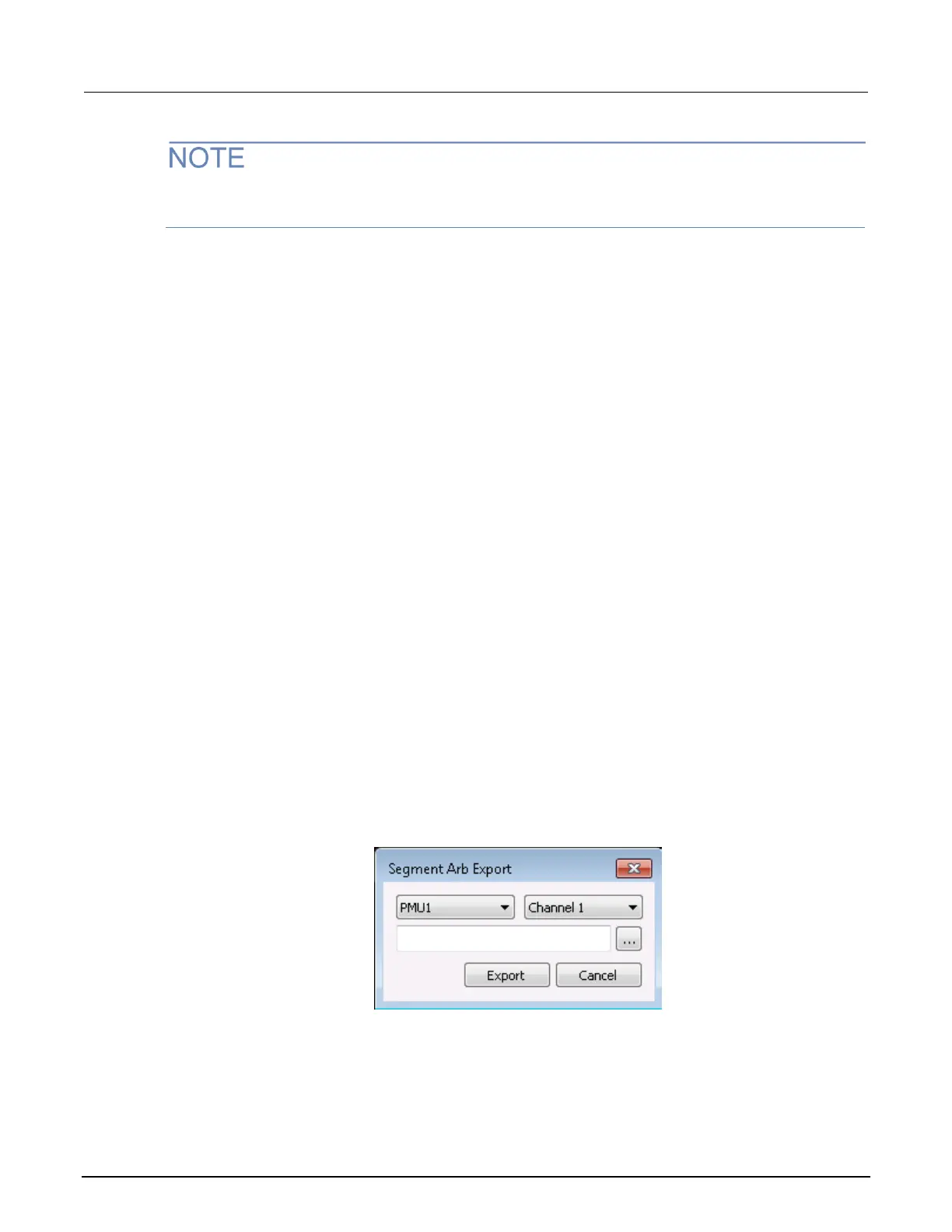

Figure 104: Segment Arb Export dialog box
3. Select the pulse card and channel for the waveform to be exported.
4. Select ....
5. Locate the target folder.
