Section 8: Testing flash memory Model 4200A-SCS Pulse Card (PGU and PMU) User's Manual
8-2 4200A-PMU-900-01 Rev. A December 2020

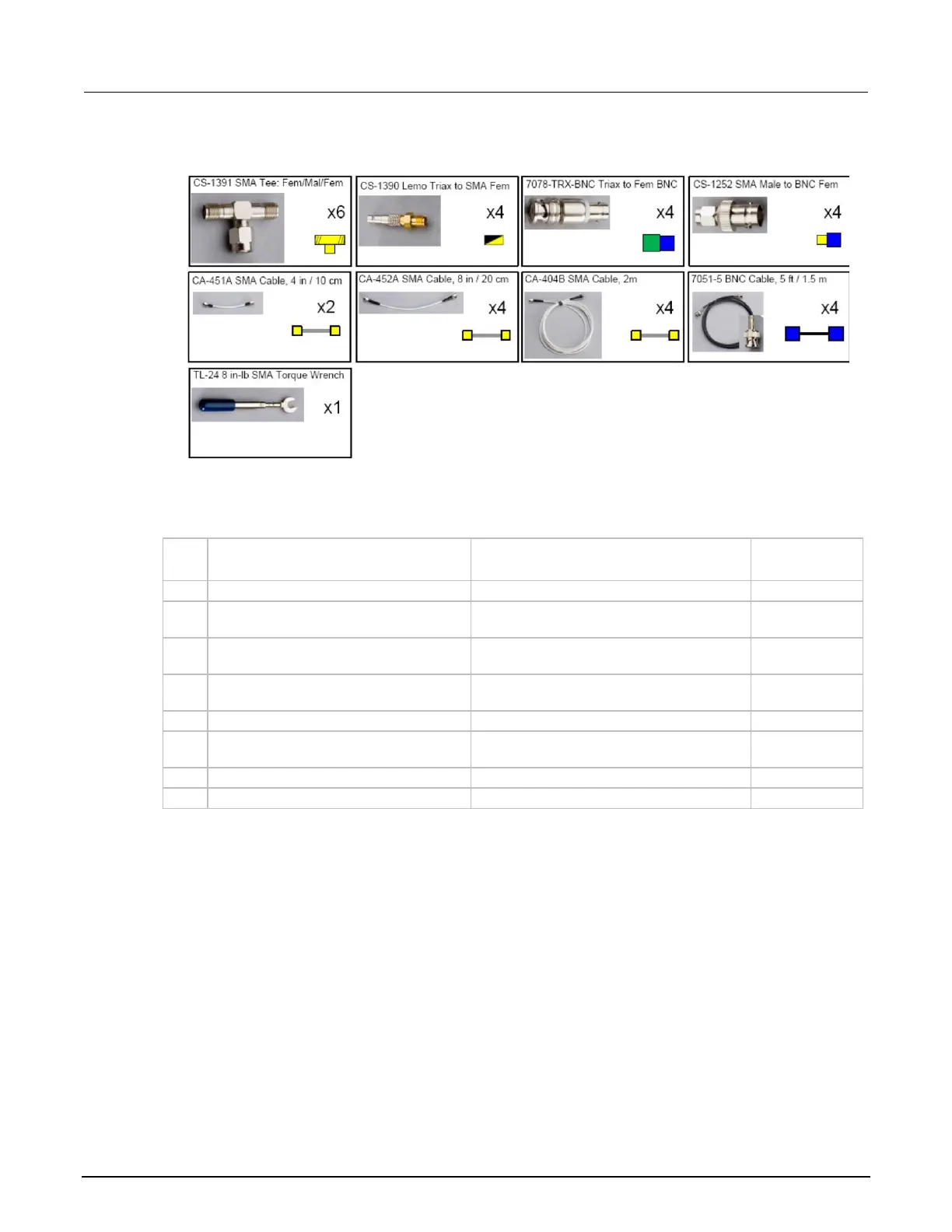

Figure 154: Recommended parts for flash memory testing
Recommended interconnect parts for flash memory testing
Qty.
Description
Comment
Keithley Model
Number
6
SMA tee, female – male – female
Trigger, combine SMU and pulse channels
CS-1391
4
LEMO triaxial to SMA adapter
Adapt SMU Force output to SMA for signal
interconnect
CS-1390
4
3-slot male triaxial to female BNC
adapter
Convert BNC cabling to triaxial for prober
or switch matrix connection
7078-TRX-BNC
4
SMA male to BNC female adapter
Adapt Tee to BNC for cabling from
instrument to probe manipulators
CS-1252
2
10.8 cm (4.25 in.) white SMA cables
Interconnect for triggering
CA-451A
4
20.3 cm (8 in.) white SMA cables
Interconnect between pulse card and SMU
signals
CA-452A
4
2 m (6.6 ft) white SMA cables
CA-404B
4
1.5 m (5 ft) BNC cable
Connect to probe manipulators
7051-5
This configuration permits independent source and measure for each terminal in a typical 4-terminal
floating gate transistor.
