Model 4200A-SCS Pulse Card (PGU and PMU) User's Manual Section 2: Connections
4200A-PMU-900-01 Rev. A December 2020 2-19
Offset current compensation
Error currents can be introduced into your pulsed measurements setup by PMUs. PMU offset
compensation reduces error currents by subtracting measurements taken at 0 V from all subsequent
readings.
Perform connection compensation
To compensate for connections:
1. In Clarius, select Tools. The Clarius Tools dialog box opens.

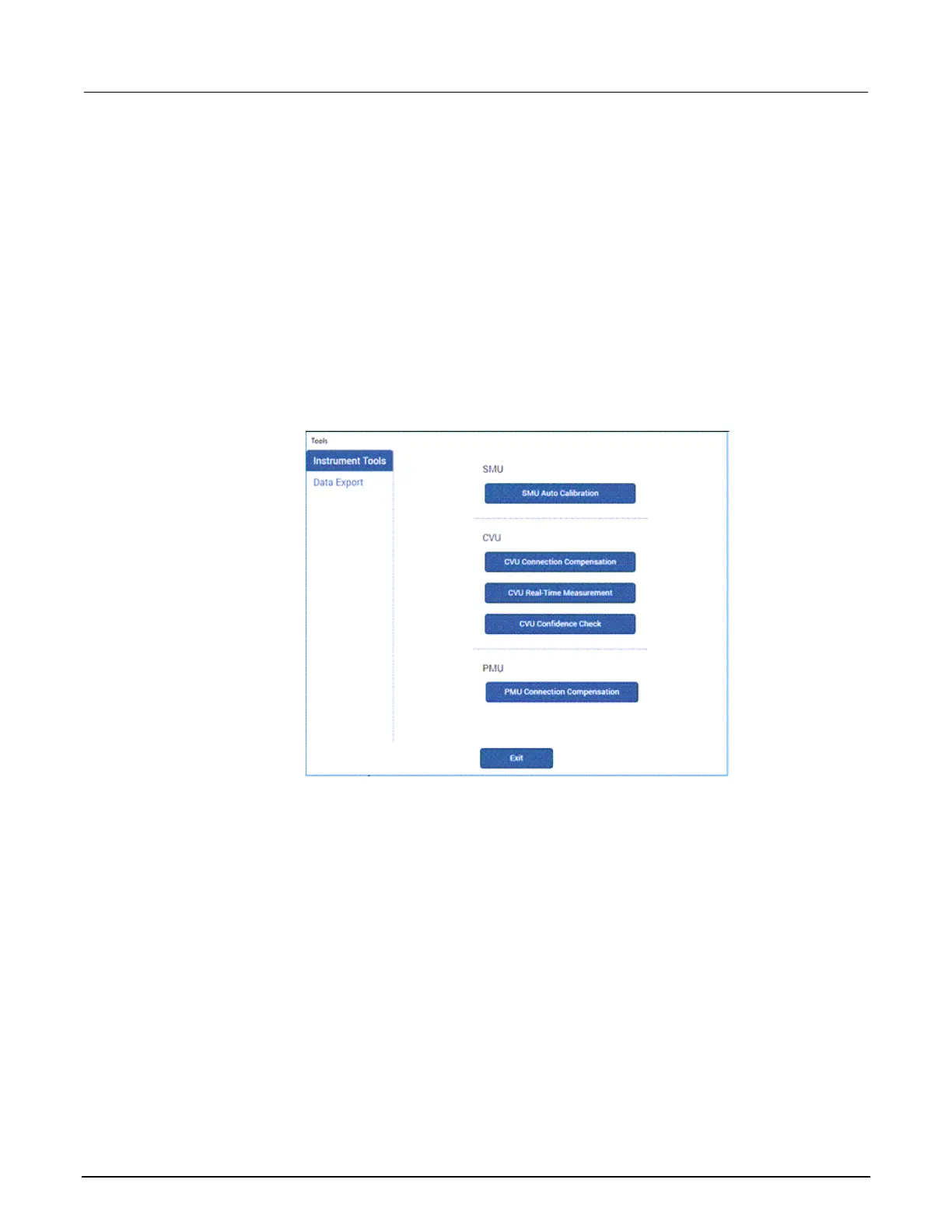

Figure 19: Clarius Tools dialog box
2. Select PMU Connection Compensation. The Short and Offset Current Connection
Compensation Values and Defaults dialog box opens.
3. From the PMU list, select the PMU that you want to perform compensation for.
