Keithley 4200A-SCS User Manual

Section 7: PMU for pulsed I-V measurements on a MOSFET Model 4200A-SCS Pulse Card (PGU and PMU) User's Manual
7-4 4200A-PMU-900-01 Rev. A December 2020

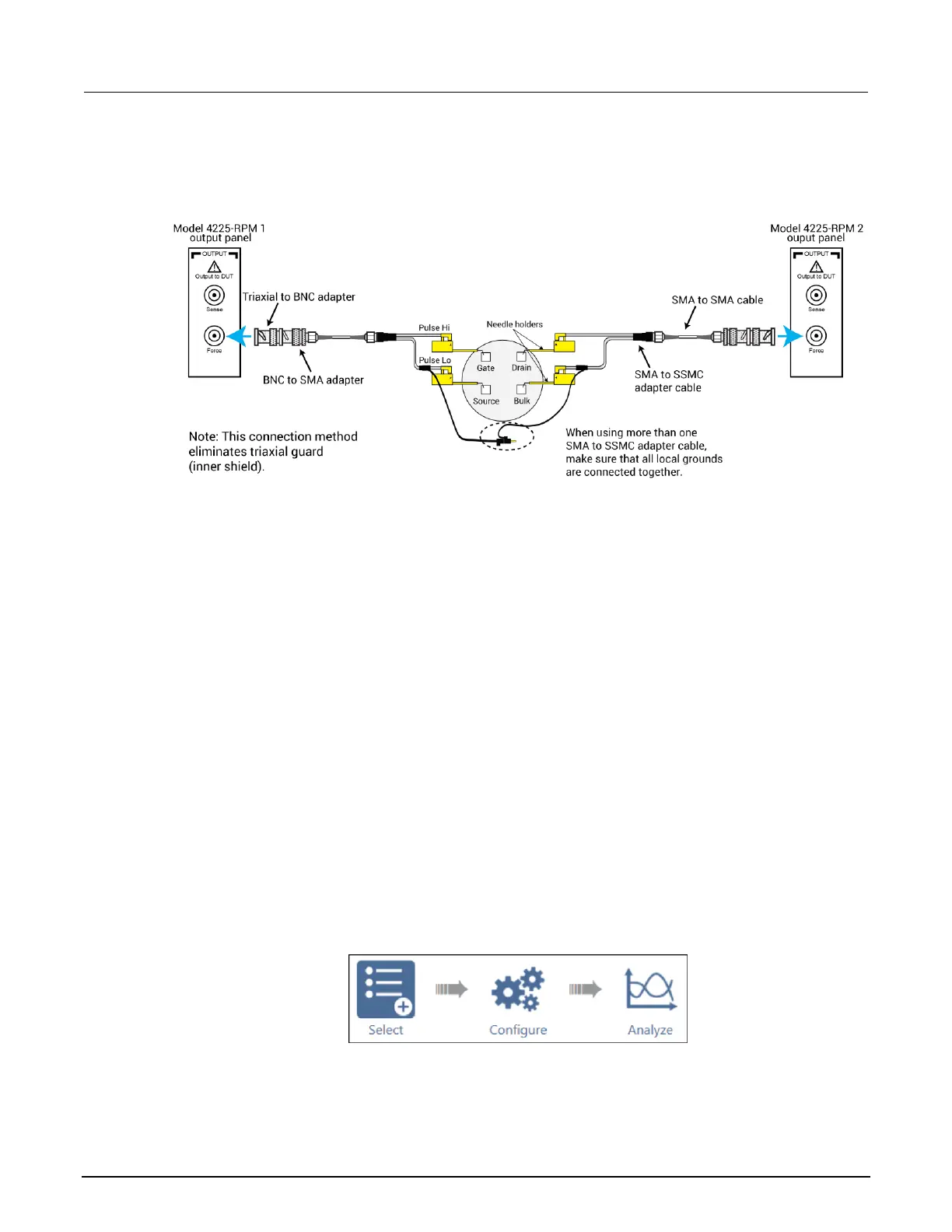

The example below illustrates connections from the RPMs to the SMA to SSMC adapter cables
(4200-PRB-C) and then to the probes and device terminals on a wafer.
Figure 143: Connections from RPM outputs to the MOSFET on a wafer
Set up the measurements in Clarius
This section describes how to set up the Clarius application to make a pulsed I-V sweep on a
MOSFET.
For this example, you use the Clarius application to:
• Create a new project
• Search for and select an existing test
• Configure the test
• Run the test and analyze the results
Create a new project
To create a new project:
1. Choose Select.
Figure 144: Select highlighted
