Configure the vfd test
To configure the vfd test:
1. Choose Configure.

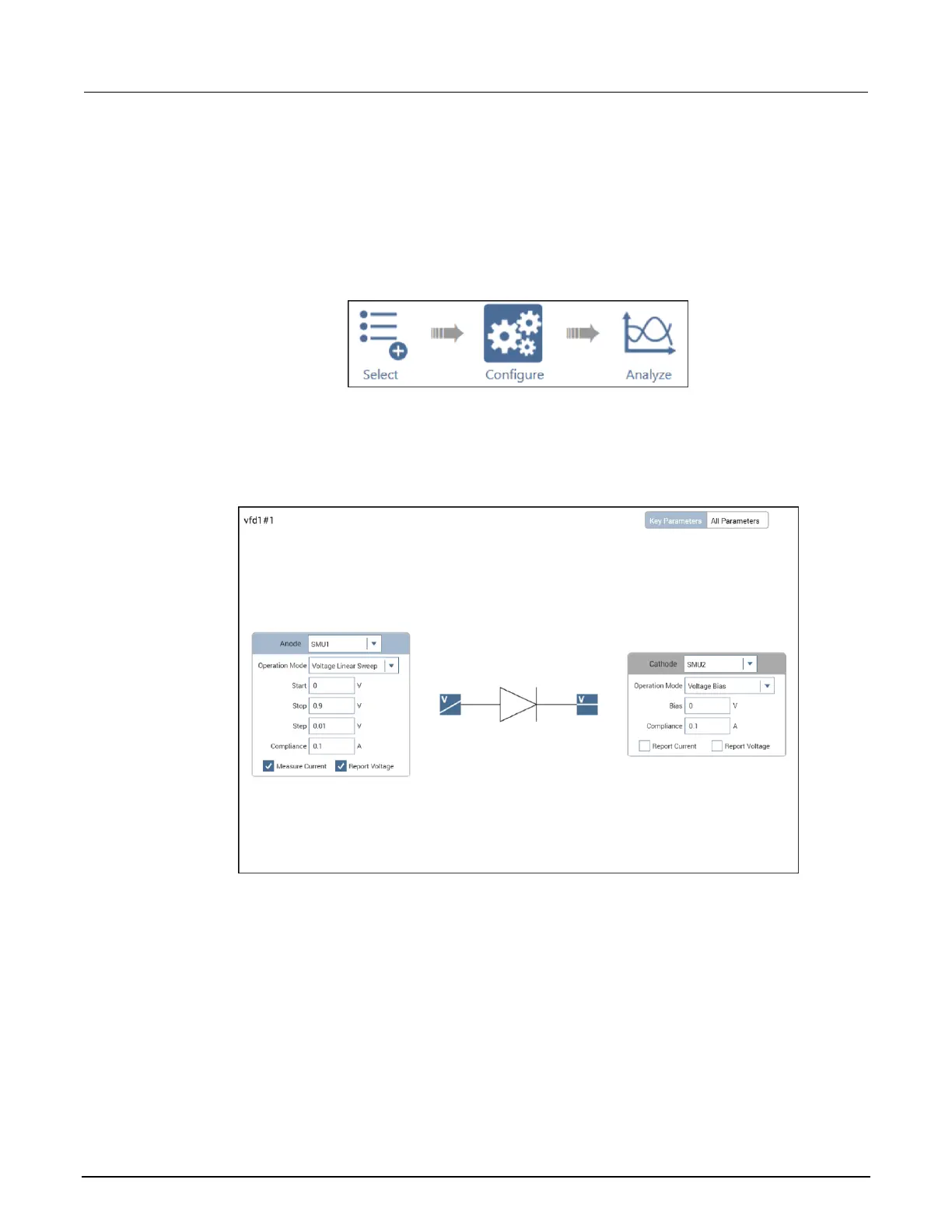

Figure 129: Configure highlighted
2. In the project tree, select the vfd test.
3. Adjust the Anode settings in the Key Parameters pane as needed.
Figure 130: Forward I-V sweep, vfd terminal settings
4. In the Test Settings pane, select Advanced.
5. Adjust the parameters as needed. Be sure to include the delay between sweep steps.
