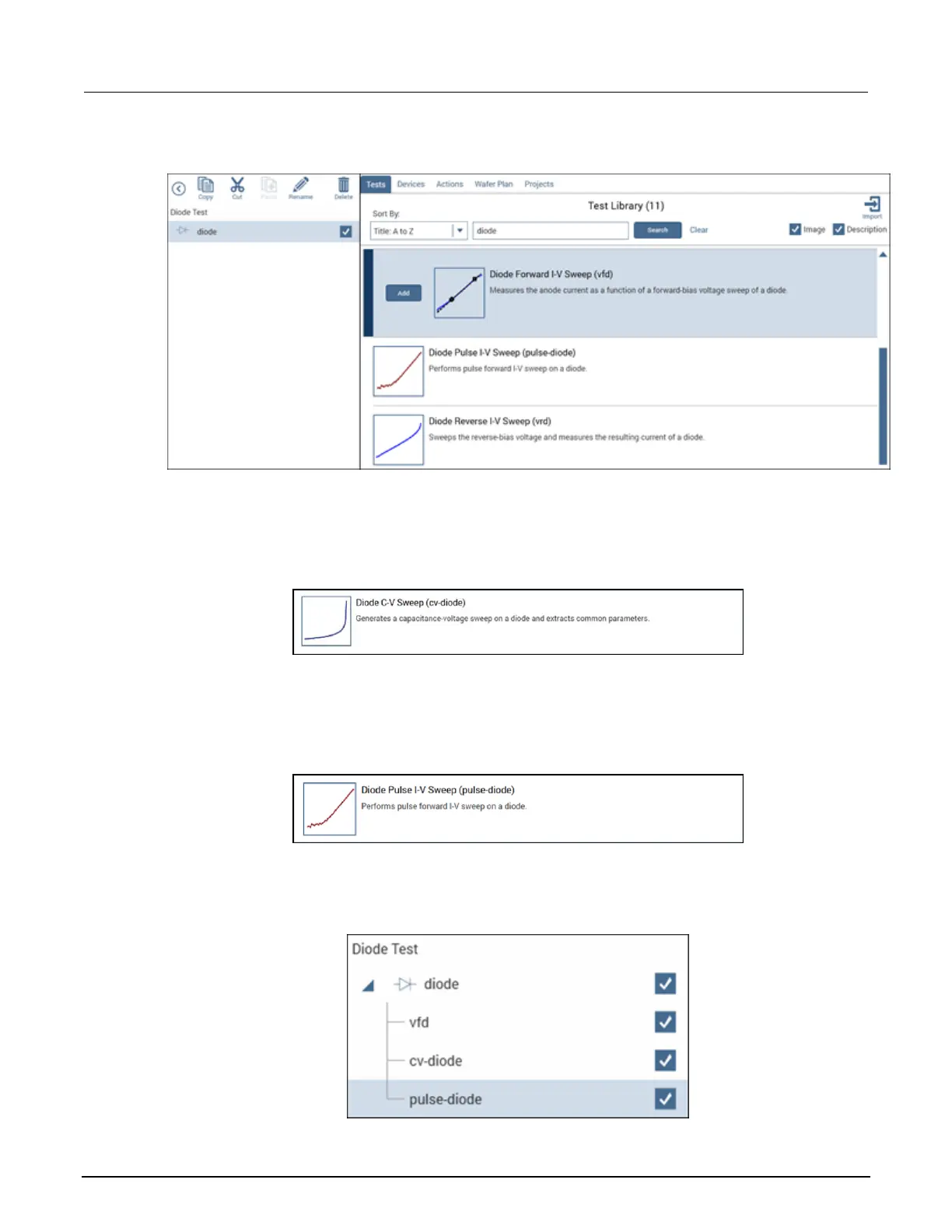

Figure 125: Add the Diode Forward I-V Sweep (vfd) test to the project tree
5. Scroll to find the Diode C-V Sweep (cv-diode) test.
6. Select Add to add this test to the project tree.
Figure 126: Diode C-V Sweep (cv-diode) test
7. Scroll to find the Diode Pulse I-V Sweep (pulse-diode) test.
8. Select Add to add this test to the project tree.
Figure 127: Diode Pulse I-V Sweep (pulse-diode) test
Your project tree now has three tests.
Figure 128: Three tests added to project tree
