Keithley 4200A-SCS User Manual

Section 6: Use the RPM to switch the SMU, CVU, and PMU Model 4200A-SCS Pulse Card (PGU and PMU) User's Manual
6-4 4200A-PMU-900-01 Rev. A December 2020

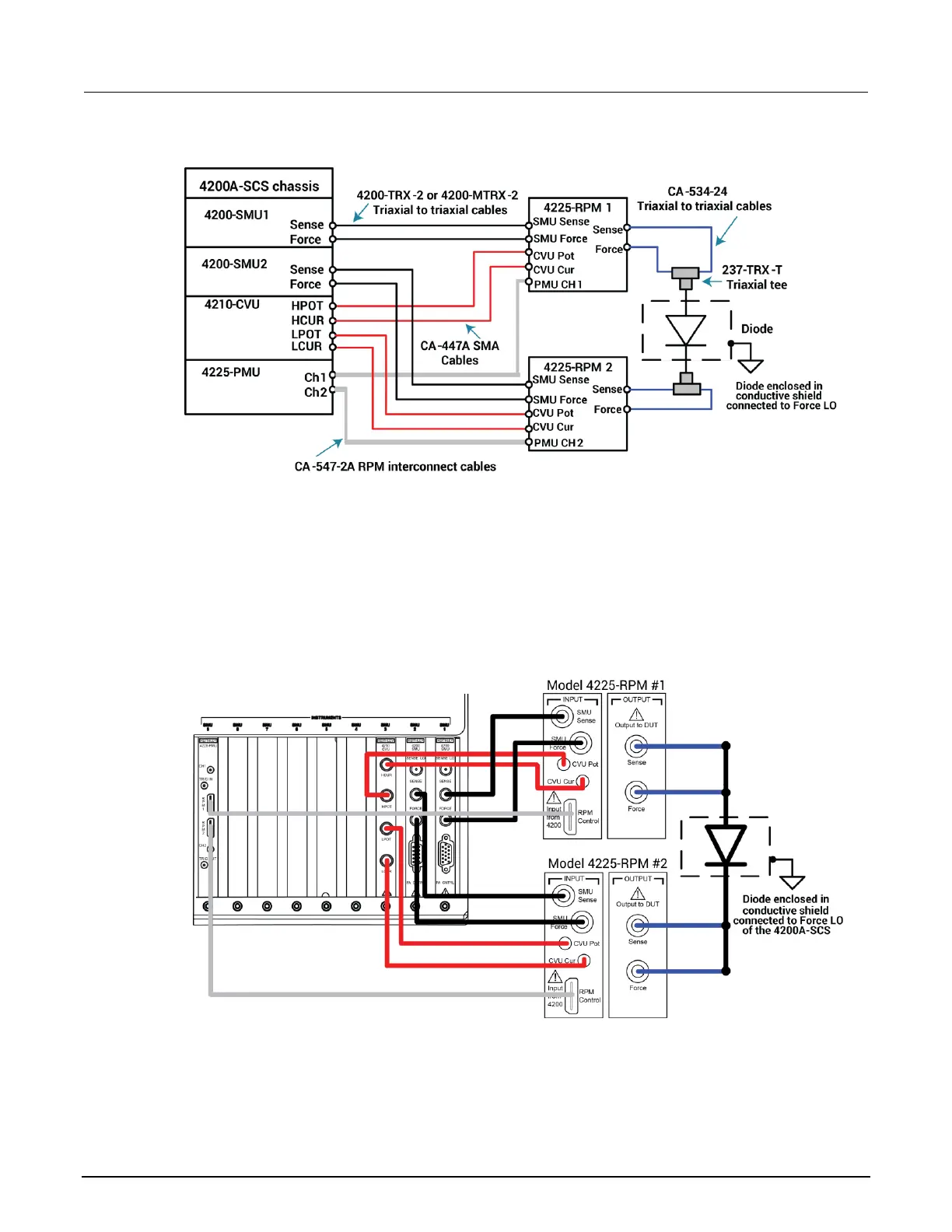

Figure 120: Connections from the 4200A-SCS and 4225-RPMs to the diode
Connect the 4200A-SCS to the DUT
The following figure shows the 4200A-SCS rear panel connections to the input terminals of two
4225-RPMs and from the outputs of the 4225-RPMs to the diode.
Figure 121: Rear panel connections to the inputs of the 4225-RPM units and from the units to
the device
