Keithley 4200A-SCS User Manual

Model 4200A-SCS Pulse Card (PGU and PMU) User's Manual Section 8: Testing flash memory
4200A-PMU-900-01 Rev. A December 2020 8-11
Connections for endurance testing - switch matrix
A switch matrix is recommended for testing array test structures for endurance or disturb.

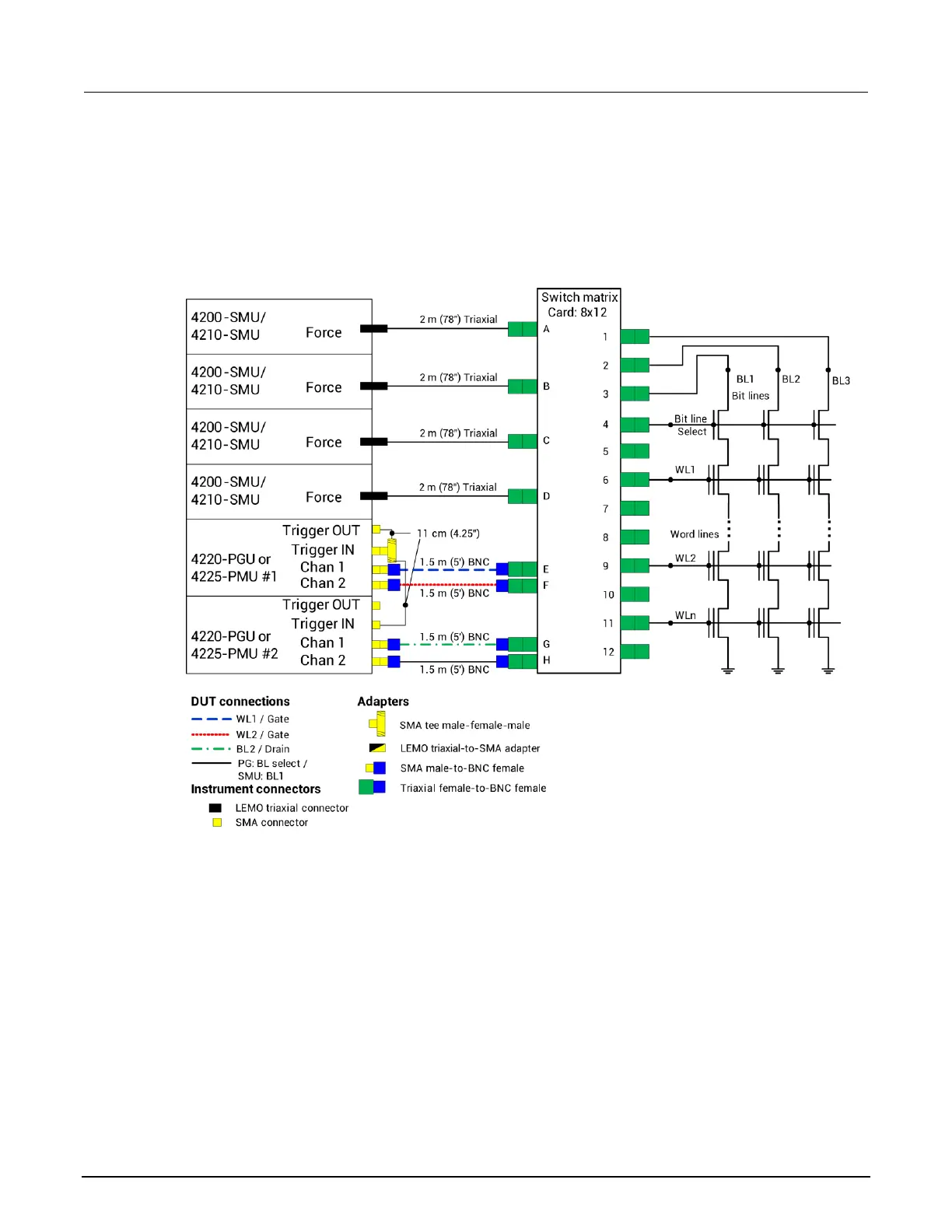

Figure 166: 4200-900_Flash Switch connections - characterization endurance or disturb
testing
