Add a device
To add a device:
1. Select Devices.
2. Type diode into the search box.
3. Select Search.
4. Select the Diode, 2 terminal device.
5. Select Add to add it to the project tree.

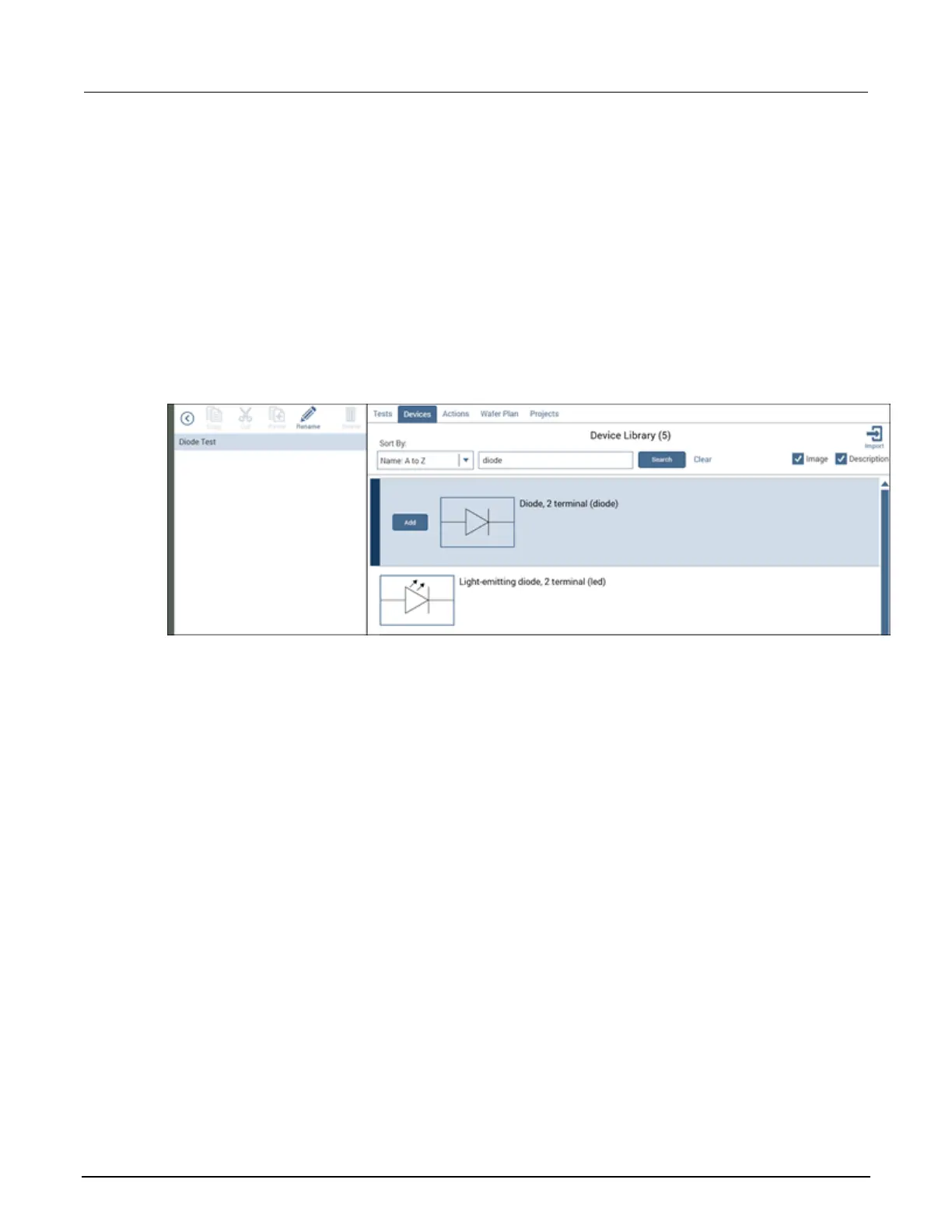

Figure 124: Select and add a diode device to the project tree
Search for and select existing tests in the Test Library
To search for and select an existing test:
1. Select Tests.
2. To find a diode test in the Test Library, type the word diode in the search box, then select
Search.
3. Scroll to find the Diode Forward I-V Sweep (vfd) test.
4. Select Add to add the test to the project tree.
