Model 4200A-SCS Pulse Card (PGU and PMU) User's Manual Section 3: Setting up PMUs and PGUs in Clarius
4200A-PMU-900-01 Rev. A December 2020 3-25
To open the PMU Advanced Test Settings dialog box, select Test Settings, then Advanced (see
following figure).

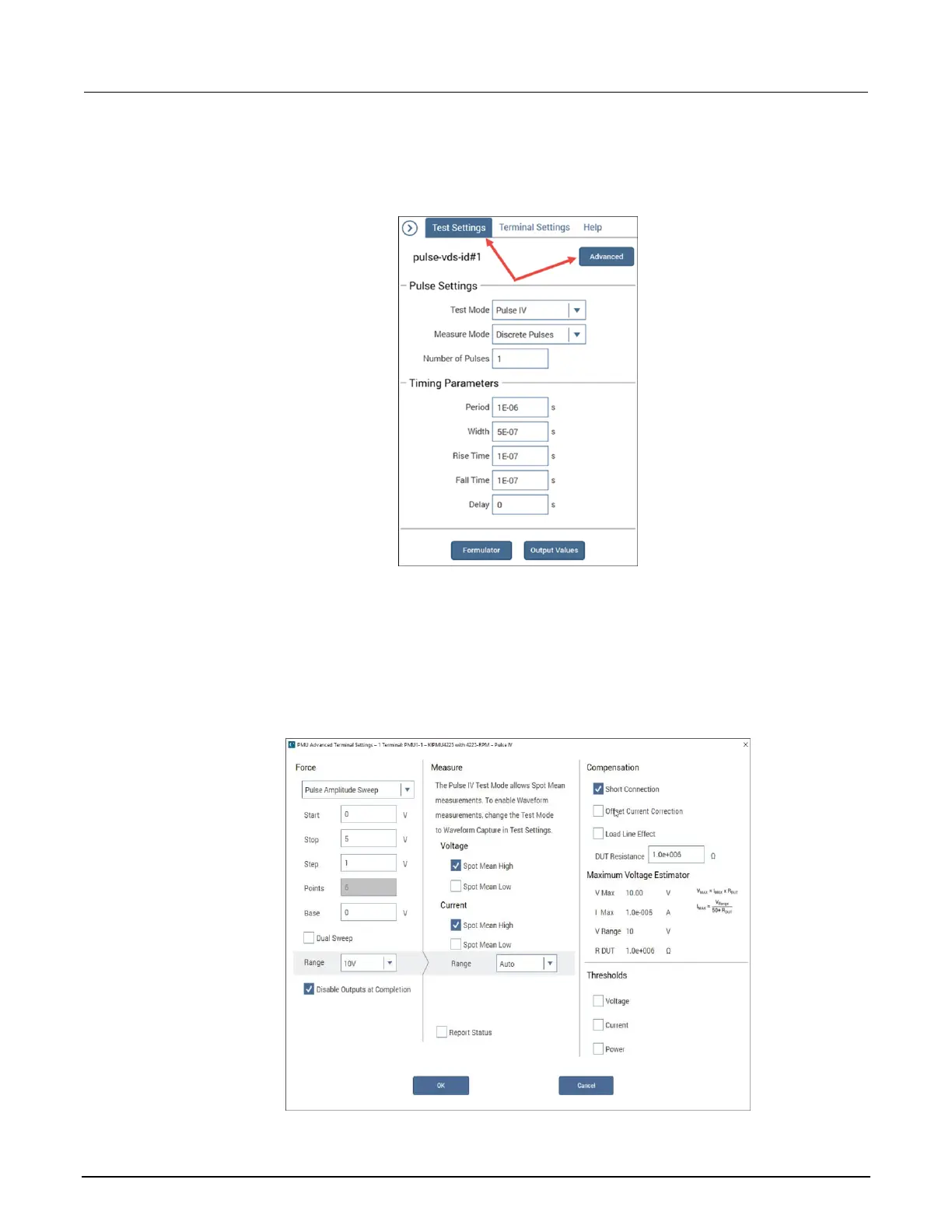

Figure 54: Timing button (PDU Definition tab)
Review the following examples to understand the Pulse Timing Preview feature.
PMU amplitude sweep example (one-channel)
This figure illustrates the configuration for a pulse amplitude sweep using a single PMU channel.
Figure 55: One-channel PMU amplitude sweep
