Keithley 4200A-SCS User Manual

Section 2: Connections Model 4200A-SCS Pulse Card (PGU and PMU) User's Manual
2-16 4200A-PMU-900-01 Rev. A December 2020

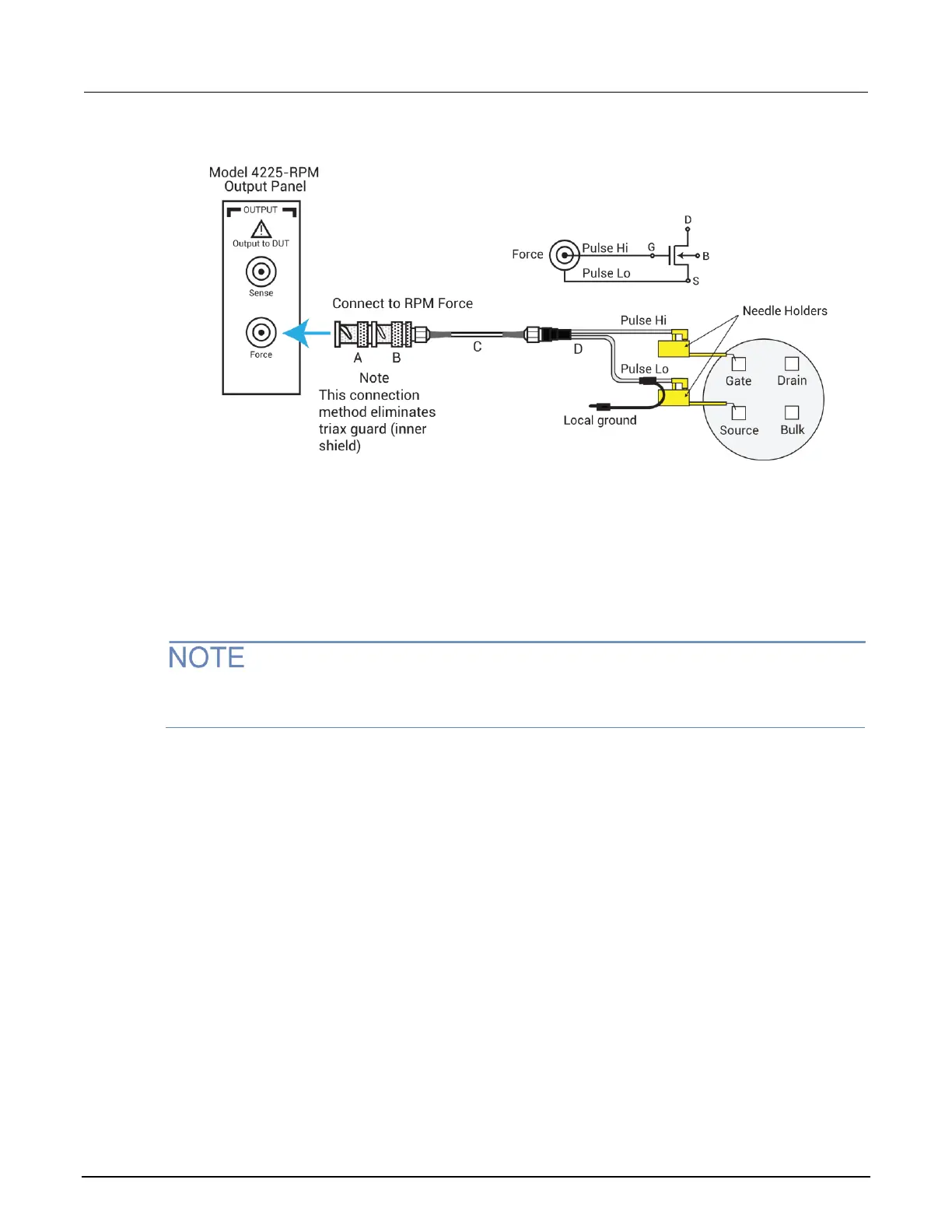

Figure 17: Two-terminal local sense connections using the SMA to dual SSMC adapter cable
A. Triaxial male-to-BNC female adapter (supplied with the RPM)
B. BNC male-to-SMA female adapter (supplied with the RPM)
C. White SMA cable (8 in./20.32 cm, supplied with the RPM)
D. SMA-to-SSMC Adapter Cable (4200-PRB-C, supplied with the PMU)
The needle holders shown in the previous two figures are supplied by the user.
When using two RPMs for four-terminal testing, two Y-cable assemblies are required. Make sure to
connect the two local grounds of the two cable assemblies together (see following figure).
RPM connections to a prober
Optional prober cable kits are available from Keithley Instruments. These kits provide connections to
a DUT:
• Model 4210-MMPC-S: Use this cable kit with the Suss Micro Tec PA200/300 series prober.
• Model 4210-MMPC-C: Use this cable kit with the Cascade Microtech 12000 series prober
(manipulator type DCM-200 series).
• Model 4210-MMPC-L: Use this cable kit with a Lucas Signatone Wavelink series prober.
• Model 4210-MMPC-W: Use this cable kit with the Wentworth prober.
