Keithley 4200A-SCS User Manual

Model 4200A-SCS Pulse Card (PGU and PMU) User's Manual Section 2: Connections
4200A-PMU-900-01 Rev. A December 2020 2-17
For details on using these prober cable kits, refer to PA-1000 for the Suss prober, PA-1001 for the
Cascade prober, PA-1080 for the Lucas Signatone prober, and PA-1085 for the Wentworth prober.

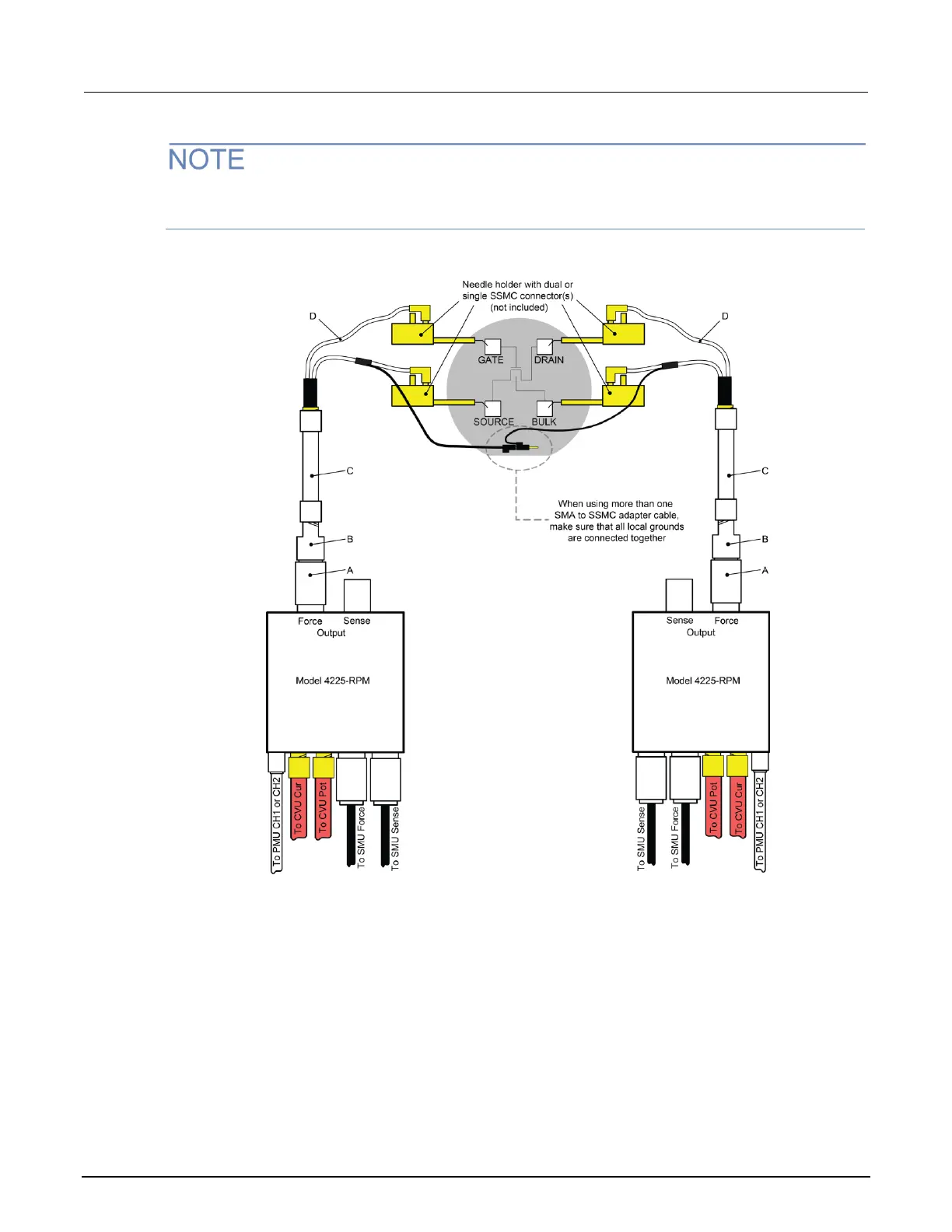

Figure 18: RPM connections to a prober
A. Triax male-to-BNC female adapter (supplied with the RPM)
B. BNC male-to-SMA female adapter (supplied with the RPM)
C. White SMA cable (8 in./20.32 cm, supplied with the RPM)
D. SMA-to-SSMC Adapter Cable (4200-PRB-C, supplied with the PMU)
