Keithley 4200A-SCS User Manual

Section 7: PMU for pulsed I-V measurements on a MOSFET Model 4200A-SCS Pulse Card (PGU and PMU) User's Manual
7-6 4200A-PMU-900-01 Rev. A December 2020
Configure the test
To configure the test:
1. Select Configure.

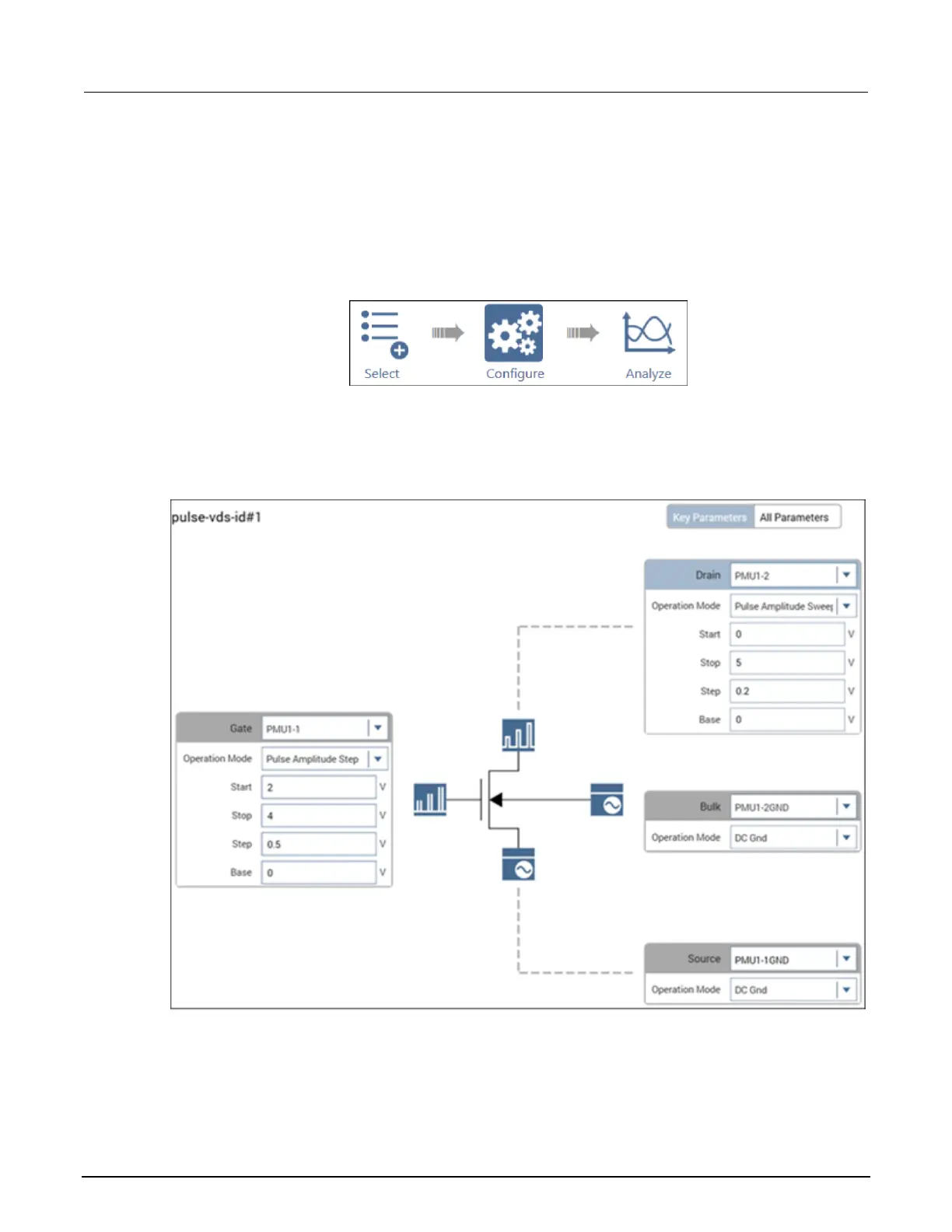

Figure 147: Configure button highlighted
2. From the Key Parameters pane, adjust the pulse voltage sweep levels of PMU1-2 on the Drain
terminal and the Pulse Step Voltage of PMU1-1 on the Gate terminal, as needed.
Figure 148: Key Parameters pane for the pulse-vds-id test
