3. From the Test Settings pane and Advanced Test Settings dialog box, adjust the Pulse Settings
and Timing Parameters as needed.

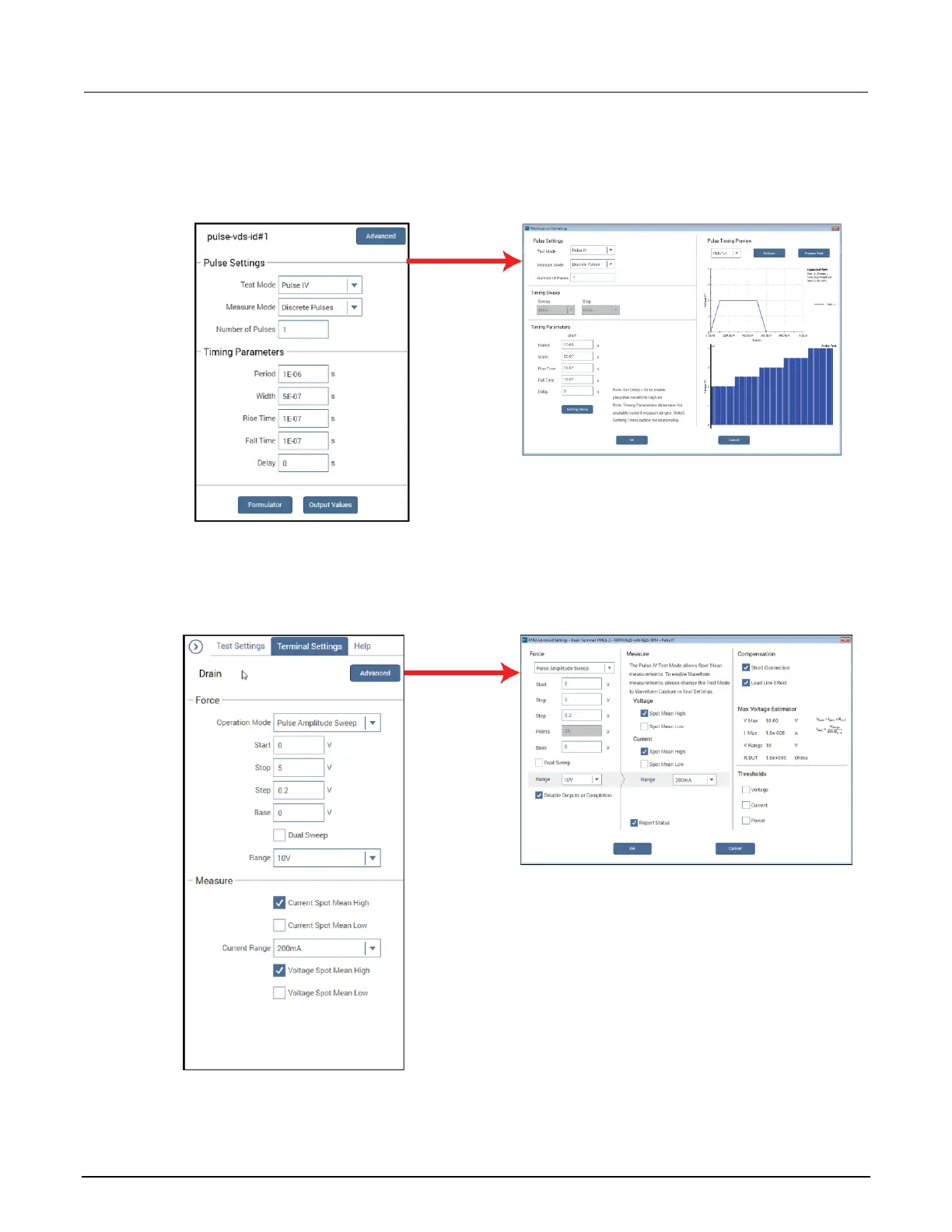

Figure 149: Test Settings pane and Test Settings Advanced dialog box
4. From the Terminal Settings pane and Advanced Terminal Settings dialog box, you can adjust the
voltage source and current measurement parameters, as needed.
Figure 150: Terminal Settings pane and Terminal Settings Advanced dialog box
