Section 7: PMU for pulsed I-V measurements on a MOSFET Model 4200A-SCS Pulse Card (PGU and PMU) User's Manual
7-8 4200A-PMU-900-01 Rev. A December 2020
Run the test and analyze the results
Select Run to execute the test.

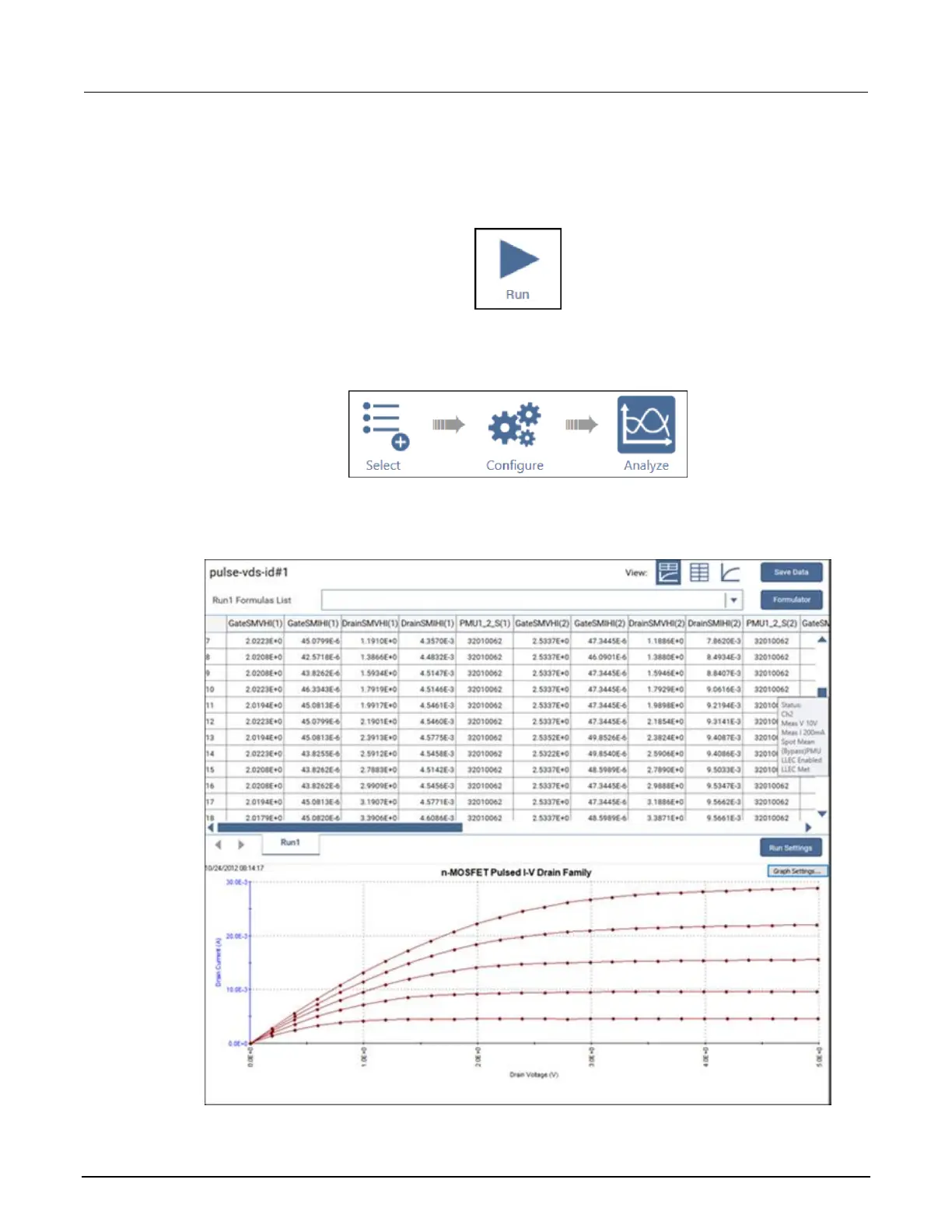

Figure 151: Run
You can select Analyze when you run the project to view test results in real time.
Figure 152: Analyze highlighted
The data and the graph are displayed in the Analyze pane, as shown in the following figure.
Figure 153: Analyze results pane with data and graph displayed
