Model 4200A-SCS Pulse Card (PGU and PMU) User's Manual Section 6: Use the RPM to switch the SMU, CVU, and PMU
4200A-PMU-900-01 Rev. A December 2020 6-15

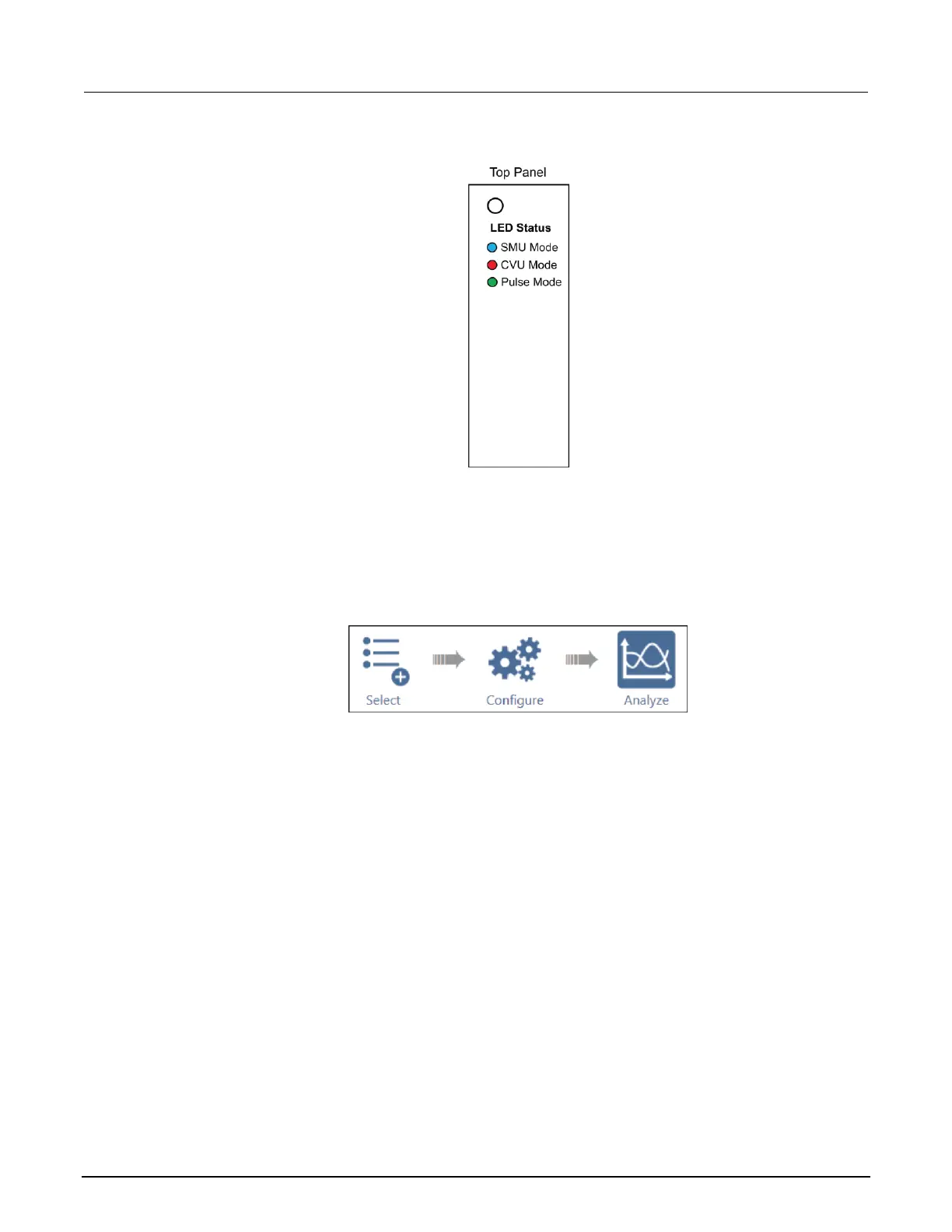

Figure 139: Top of the 4225-RPM indicating the LED status
View and analyze the test results
You can select Analyze when you run the project to view test results in real-time.
Figure 140: Analyze highlighted
Select a test from the project tree to display its results. The data for the vfd test is displayed in the
following figure. Both the data and the graph are displayed in this view.
