Section 6: Use the RPM to switch the SMU, CVU, and PMU Model 4200A-SCS Pulse Card (PGU and PMU) User's Manual
6-10 4200A-PMU-900-01 Rev. A December 2020
Configure the cv-diode test
To configure the cv-diode test:
1. Select the cv-diode test from the project tree.
2. Select the Anode terminal of the diode in the Key Parameters pane
3. Adjust the voltage source and test frequency settings as needed.

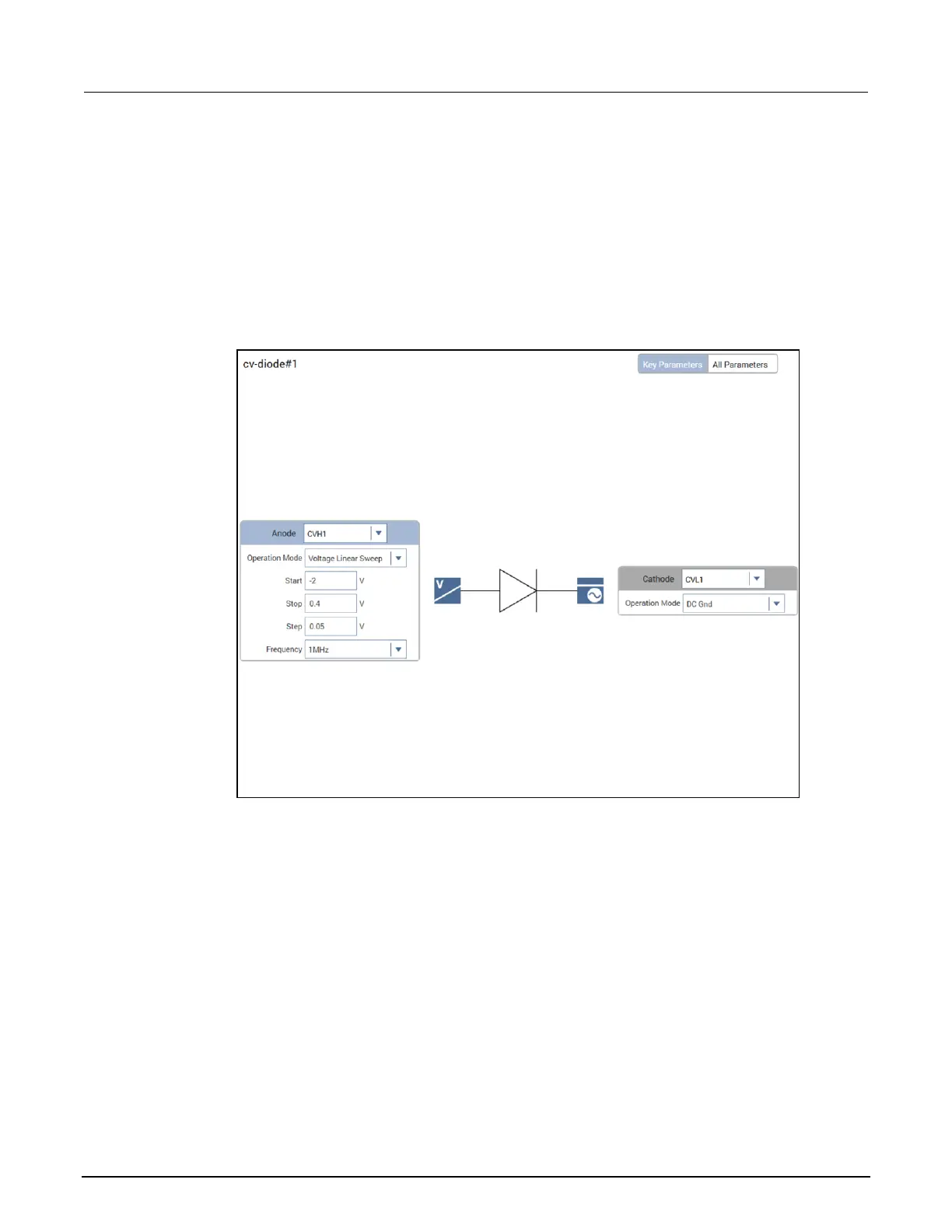

Figure 133: Key Parameters pane for the cv-diode sweep test
4. On the Test Settings pane, select Advanced. Adjust the timing parameters as needed. Be sure to
include the sweep delay time in your adjustments.
