Section 8: Testing flash memory Model 4200A-SCS Pulse Card (PGU and PMU) User's Manual
8-10 4200A-PMU-900-01 Rev. A December 2020

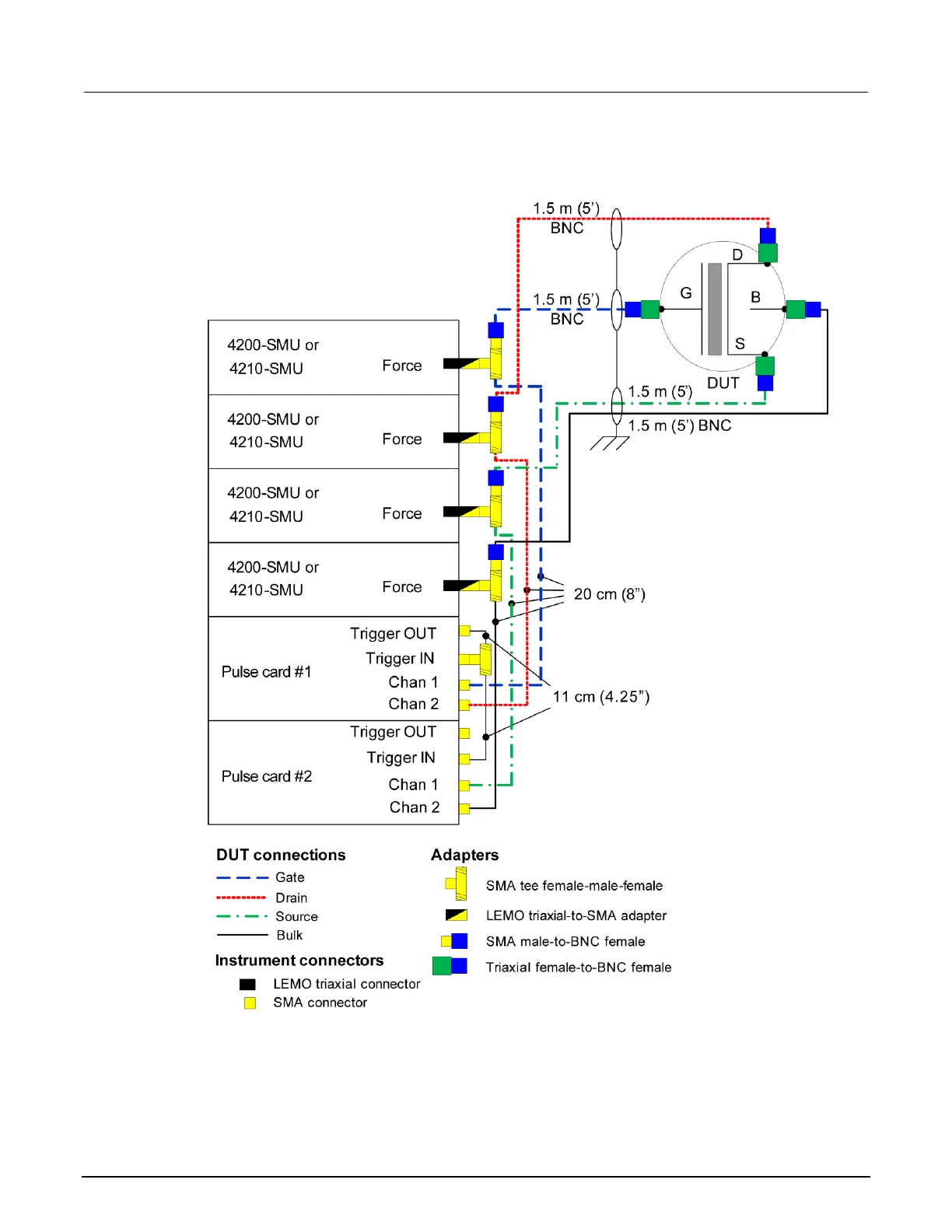

Figure 165: Flash connections - program erase and endurance testing using direct connection
to a single stand-alone 4-terminal device
