Model 4200A-SCS Pulse Card (PGU and PMU) User's Manual Section 3: Setting up PMUs and PGUs in Clarius
4200A-PMU-900-01 Rev. A December 2020 3-3
2. From the Key Parameters pane, adjust the pulse voltage sweep levels of PMU1-2 on the Drain
terminal and the Pulse Step Voltage of PMU1-1 on the Gate terminal, as needed.

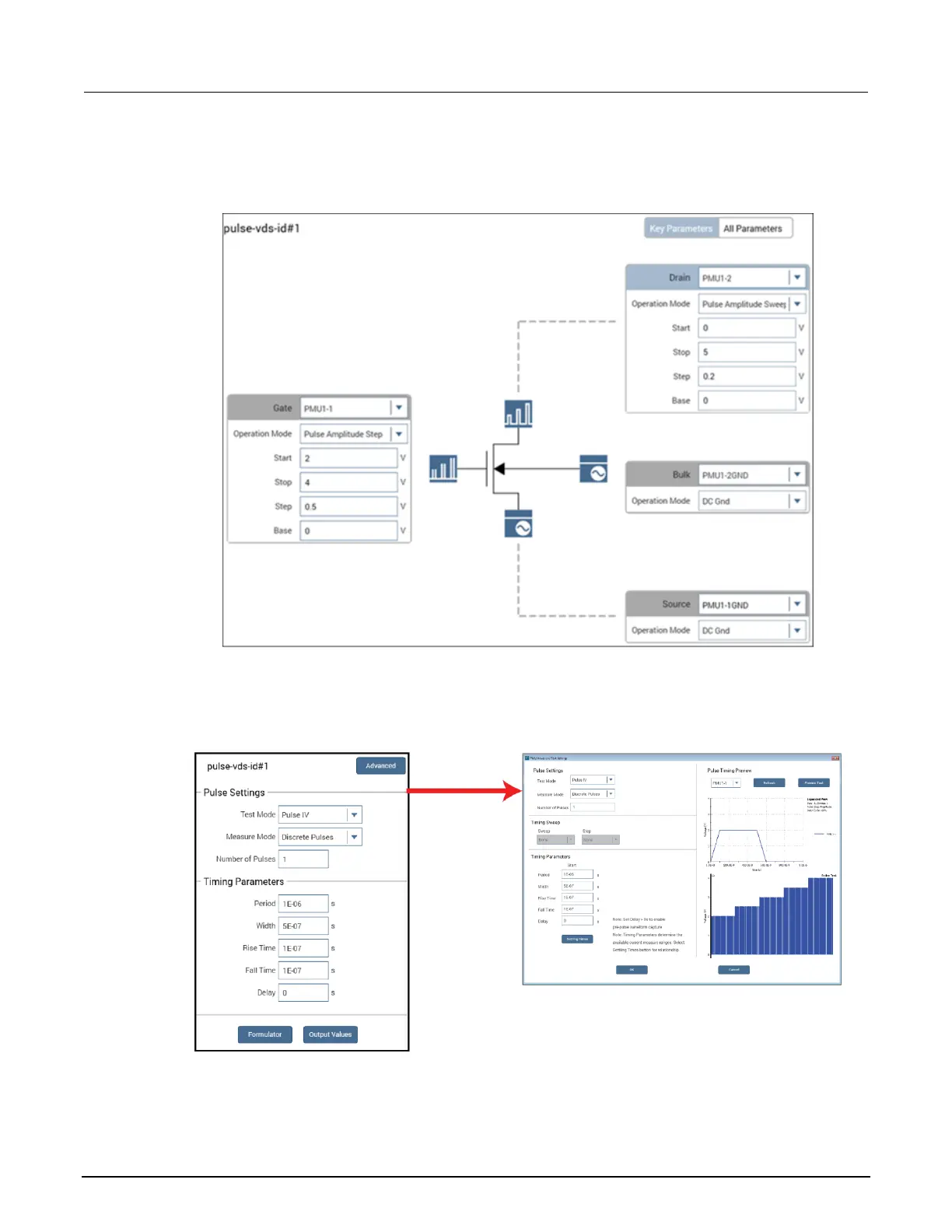

Figure 28: Key Parameters pane for the pulse-vds-id test
3. From the Test Settings pane and Advanced Test Settings dialog box, adjust the Pulse Settings
and Timing Parameters as needed.
Figure 29: Test Settings pane and Test Settings Advanced dialog box
