Keithley 4200A-SCS User Manual

Section 5: KPulse (for Keithley Pulse Cards) Model 4200A-SCS Pulse Card (PGU and PMU) User's Manual
5-14 4200A-PMU-900-01 Rev. A December 2020

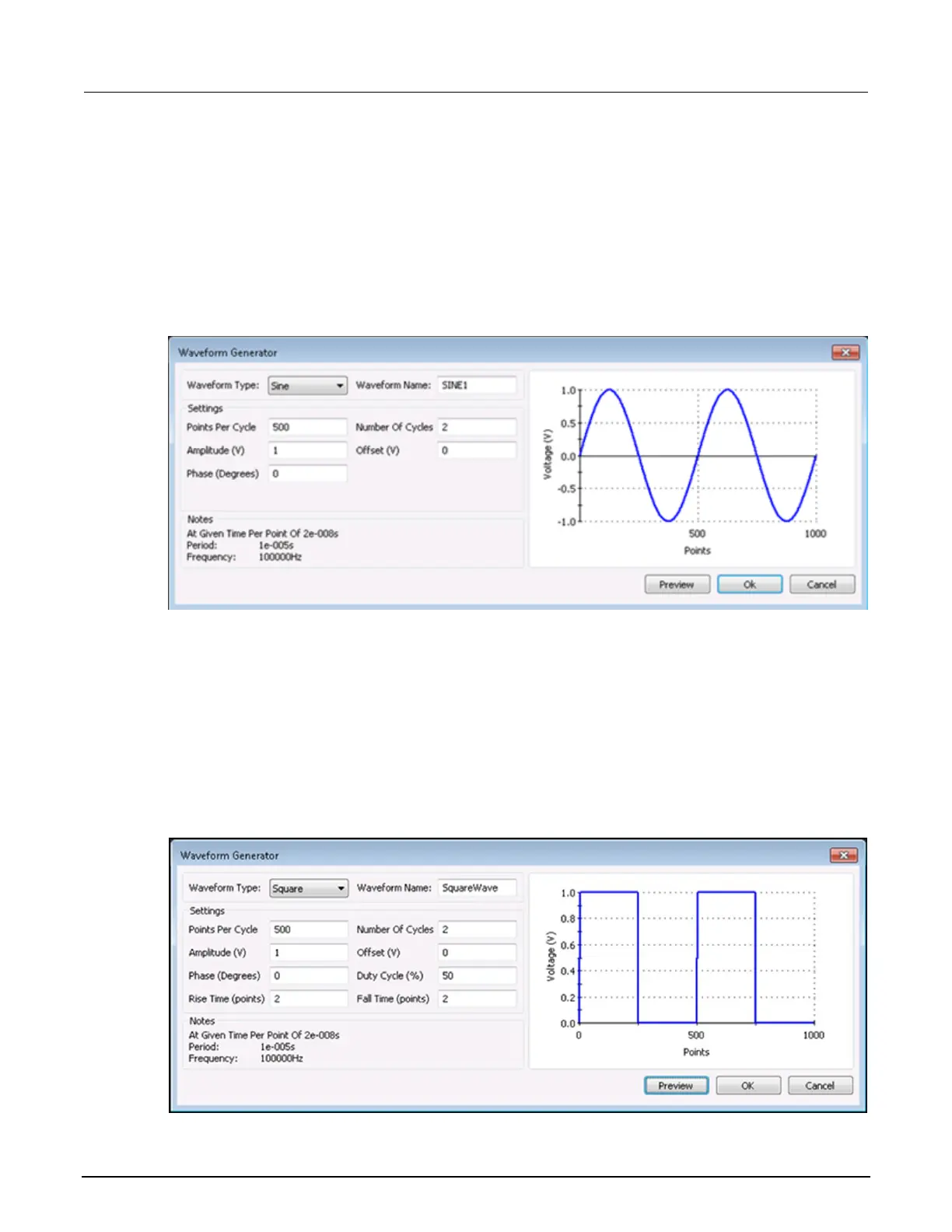

Sine waveform
An example of a sine waveform is shown in the following figure. The waveform for this example is
named SINE1, but can be any name that is not already used in the Scratch Pad.
After changing one or more settings, select Preview to display the waveform. Select OK to place the
waveform in the Scratch Pad.
Figure 109: Sine waveform
Square waveform
An example of a square waveform is shown in the following figure. The waveform for this example is
named WAVE3, but can be any name that is not already used in the Scratch Pad.
After changing one or more settings, select Preview to display the waveform. Select OK to place the
waveform in the Scratch Pad.
Figure 110: Square waveform
