4. Select the Anode terminal.
5. Select Terminal Settings.
6. Select Advanced to configure the measurements as needed, including spot mean, PMU
compensation, and PMU threshold levels.

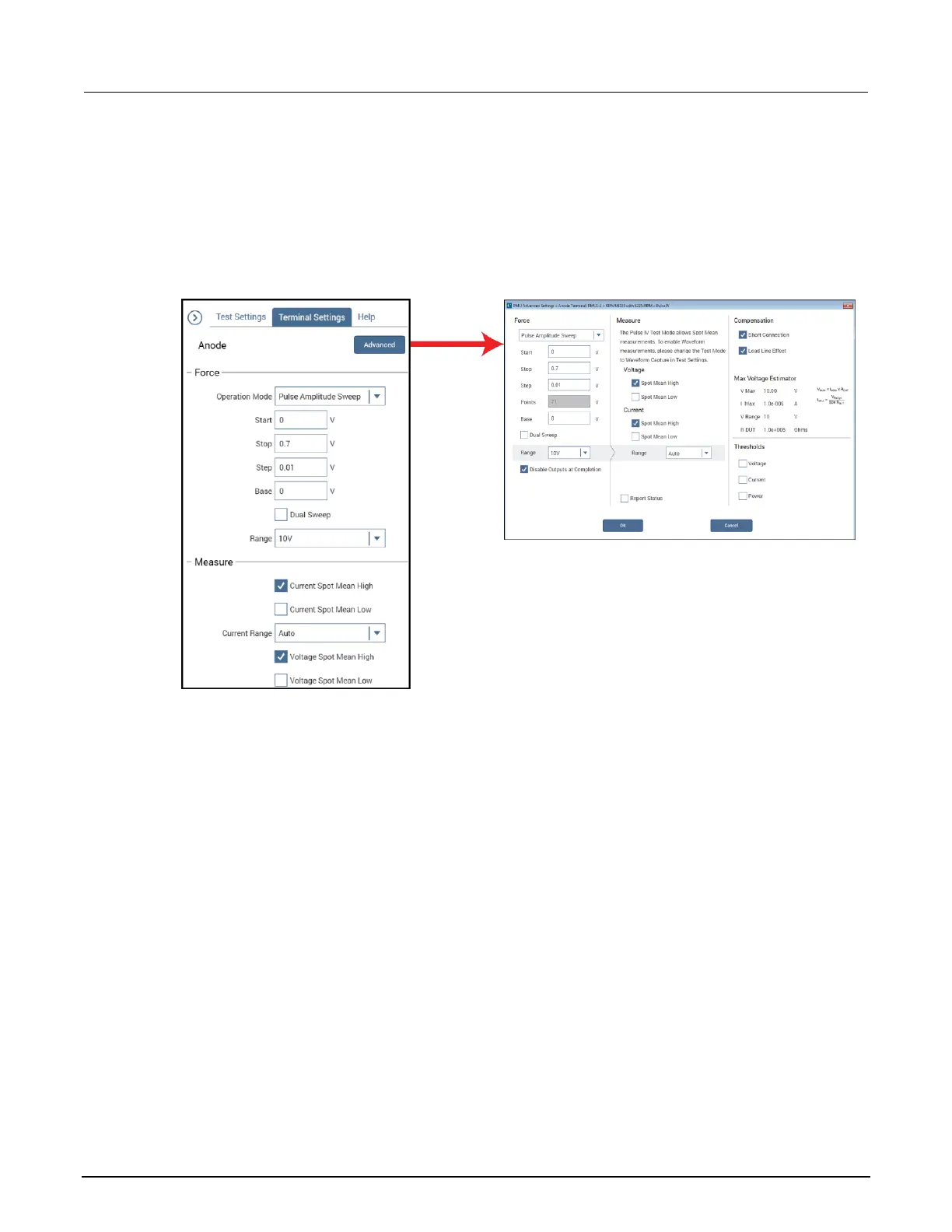

Figure 137: Terminal Settings pane and the Terminal Settings Advanced dialog box for
Pulse-Diode test
7. Select OK.
8. Select the Cathode terminal.
9. Select Test Settings.
10. Select Advanced to adjust the test mode and pulse timing settings, as needed.
