Keithley 4200A-SCS User Manual

Model 4200A-SCS Pulse Card (PGU and PMU) User's Manual Section 3: Setting up PMUs and PGUs in Clarius
4200A-PMU-900-01 Rev. A December 2020 3-5

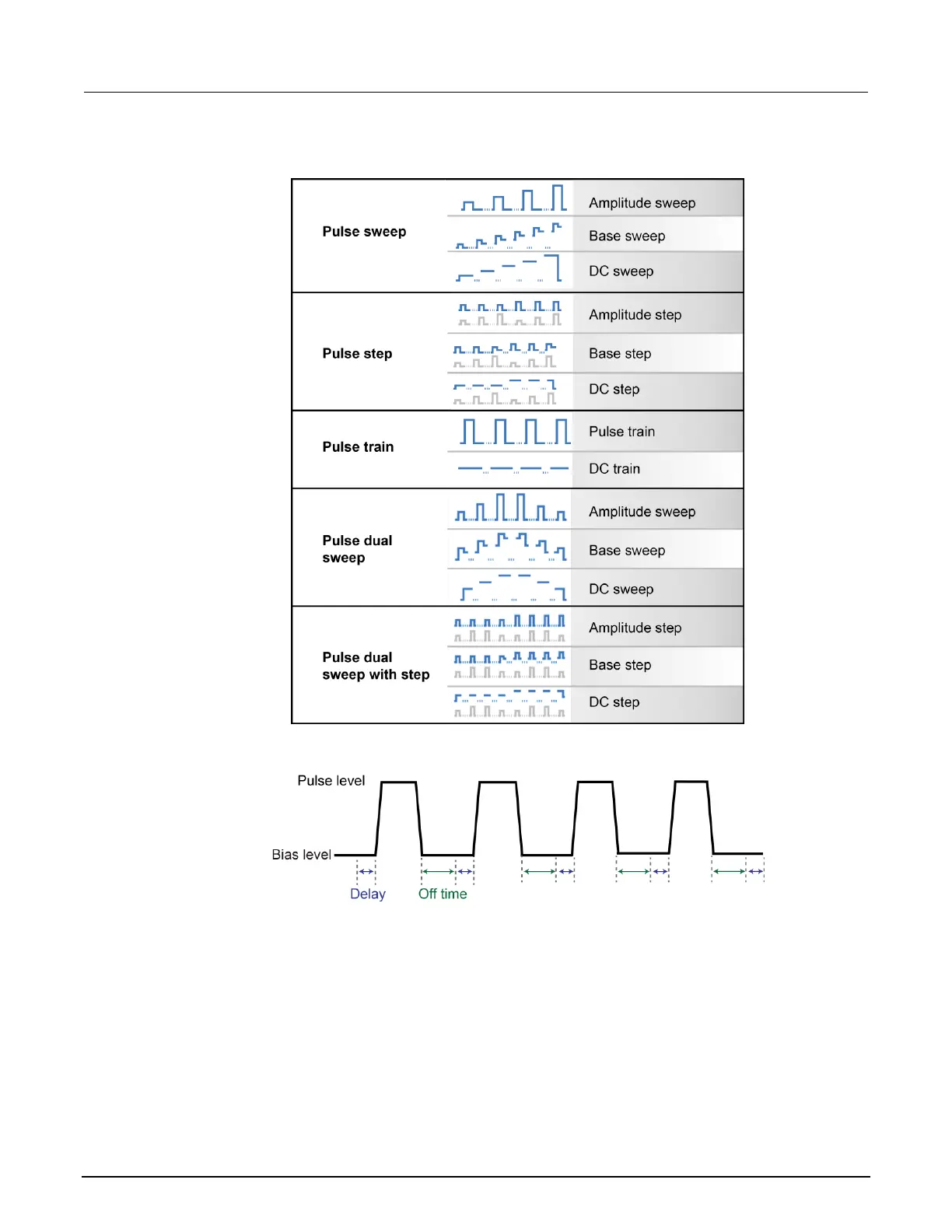

Figure 31: Pulse operation modes
Figure 32: Pulse train
When DC Bias operation mode is selected, the PMU outputs the dc base voltage. The following figure
shows a representation of a dc voltage waveform.
