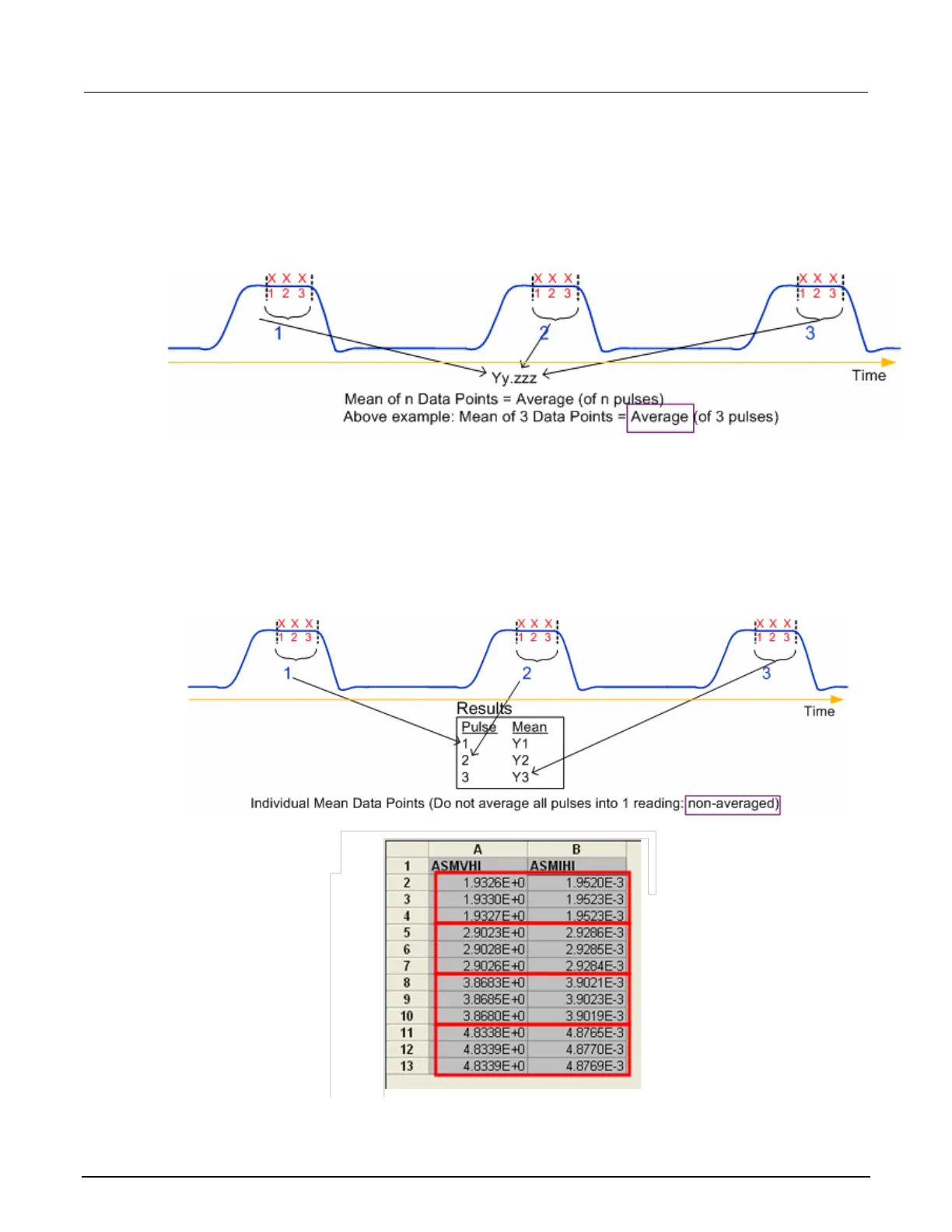

Pulse I-V (Average pulses) measurement example
For the example shown in the following figure, the mean of three pulses are averaged into a single
reading (also called a spot mean). One averaged reading is yielded for each pulse. The result of the
three averaged readings is placed in the Analyze sheet.
Figure 44: Pulse IV - Average pulses
Pulse I-V (Discrete pulses) measurement example
For the example shown in the following figure, the readings are the result of a pulsed IV sweep from 2
V to 5 V (in 1 V steps) with the discrete number of pulses set to three. This test yields the spot mean
of the three pulses for each step of the sweep. The Analyze sheet for the 12 readings are also
included in the following figure.
Figure 45: Pulse IV - Discrete pulses
