Model 4200A-SCS Pulse Card (PGU and PMU) User's Manual Section 3: Setting up PMUs and PGUs in Clarius
4200A-PMU-900-01 Rev. A December 2020 3-33
Select Shift + click and move or scroll a magnified graph by moving the mouse.

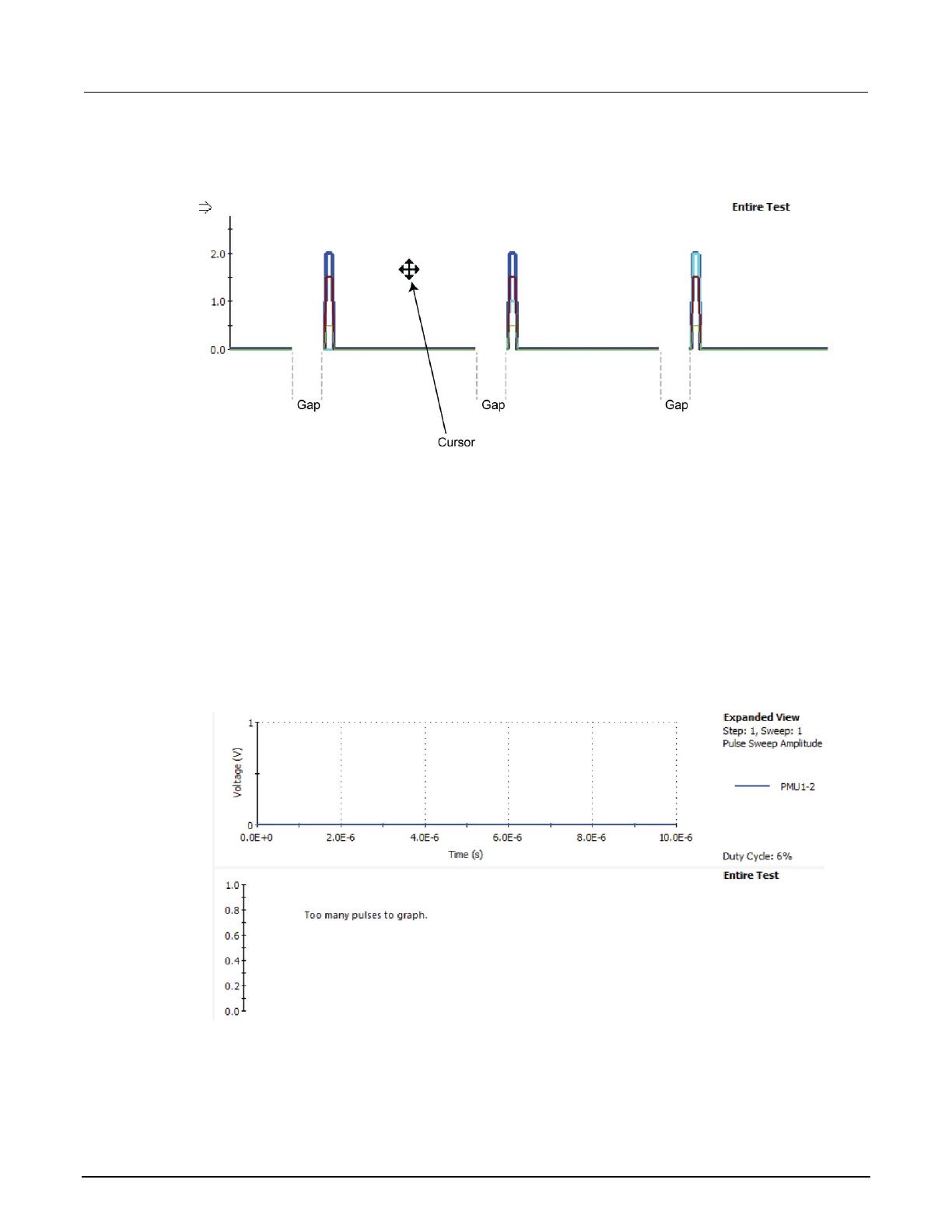

Figure 62: Scroll (or move) a magnified entire test graph
Errors
If either graph is not updating as expected, select Refresh to zoom out and redraw both graphs. It is
possible to have a test with too many pulses to be suitably graphed. This may be from too many
pulses from a large number of sweep points or step points, or a large number of pulses. The following
figure shows the output “Too many pulses to graph” for the lower graph. Note that this does not mean
that the test will not run. If you select OK on the PMU Advanced Test Settings dialog box and it does
not generate any warning or error messages, the test is valid and runs (even though the entire test
waveform cannot be displayed).
Figure 63: Preview error (Too many pulses to graph)
