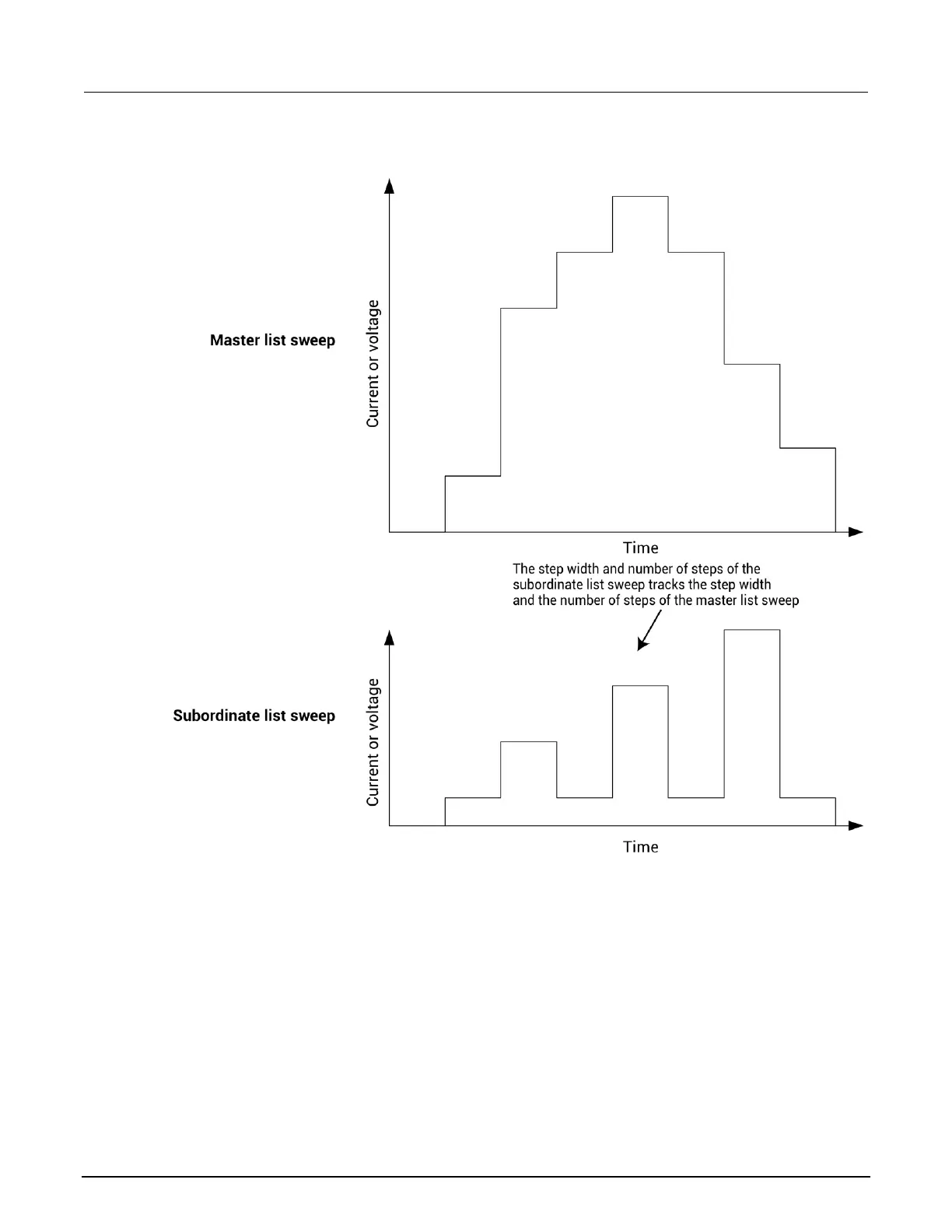

Figure 71: Master list sweeps versus subordinate list sweeps
If you do not specify an instrument to be the master, the first instrument that was assigned to the step
or sweep operation mode is assigned to be the master. You can change this designation in the Test
Settings pane.
When a master is set, Clarius sets the points and step size values for the subordinate terminal to be
the same as the settings for the master terminal. You cannot change the subordinate points value for
the subordinate terminal. For list sweeps, the number of points in the list items for the subordinate is
changed to match the number of points in the master. If points are added to the master, the last point
of the subordinate list is repeated. If points are removed from the master, the same number of points
are removed from the end of the subordinate list.
