Mixer

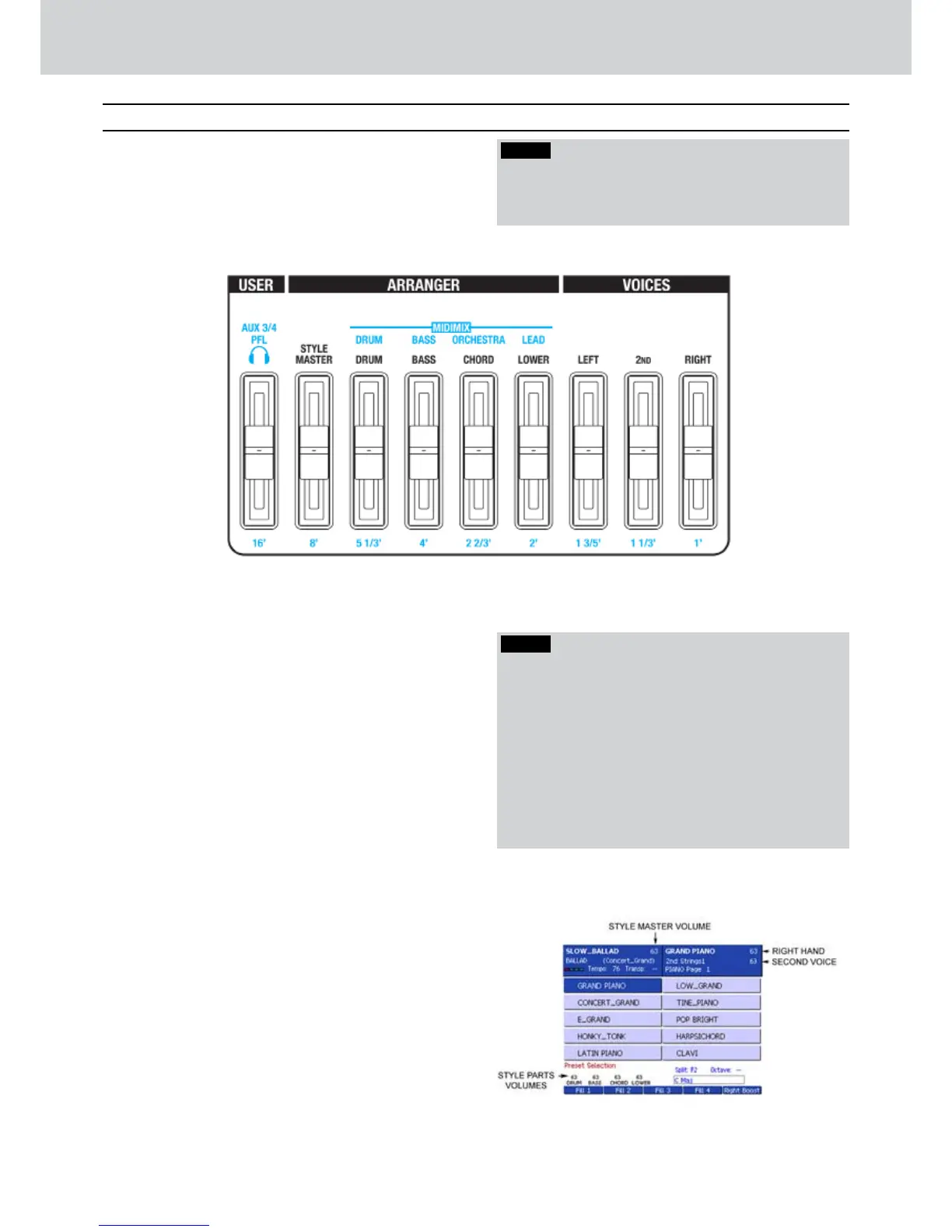

The Mixer section features nine vertical faders.
The first fader at left allows to control the USER
functions (see “User Assignable” on page 52).
The remaining eight faders control the volumes
of the ARRANGER parts and the volumes of the
VOICES parts.
U S E R
▀
This first fader at left allows to control the USER
ASSIGNABLE functions described on page 52.
The default value is the volume control for AUX
3/4 output.
ARRANGER
▀
These five faders adjust the volumes of the
Arranger parts of the style. Respectively:
STYLE MASTER: main volume of the style.
DRUM: drum part volume.
BASS: bass part volume.
CHORD: volume of the chords part.
LOWER: volume of the left split.
V O I C E S
▀
These three faders adjust the volumes of the
VOICES parts on the keyboard.
Respectively:
LEFT: volume of the voice on the left split.
2
ND: volume of the second voice on the right split.
RIGHT: volume of the voice on the right split.
The volumes of the parts are shown on the
display
(
Figure 18
). In the upper part at left, the
STYLE MASTER volume is shown. In the upper
part at right, the RIGHT and 2
ND volumes are
shown. In the lower part at left, DRUM, BASS,
CHORD and LOWER volumes are shown.
Figure 18
NOTE
When a MIDI file is playing on the Player (see the
details on page 21), the DRUM, BASS, CHORD and
LOWER faders, marked by “MIDIMIX” in blue letters,
adjust the volumes of the DRUM, BASS, ORCHESTRA
and LEAD tracks, respectively, in the following way:
DRUM: adjusts the volume of the drum track•
BASS: adjusts the volume of the bass track•
ORCHESTRA: adjusts all the other tracks•
LEAD: adjusts the volume of the melody track, usually •
on MIDI channel 4
NOTE
When the DRAWBARS mode is on, the nine faders of
the Mixer will adjust the footage of the organ. For
details see on page 16 and on page 31.
