12 Effects | 139

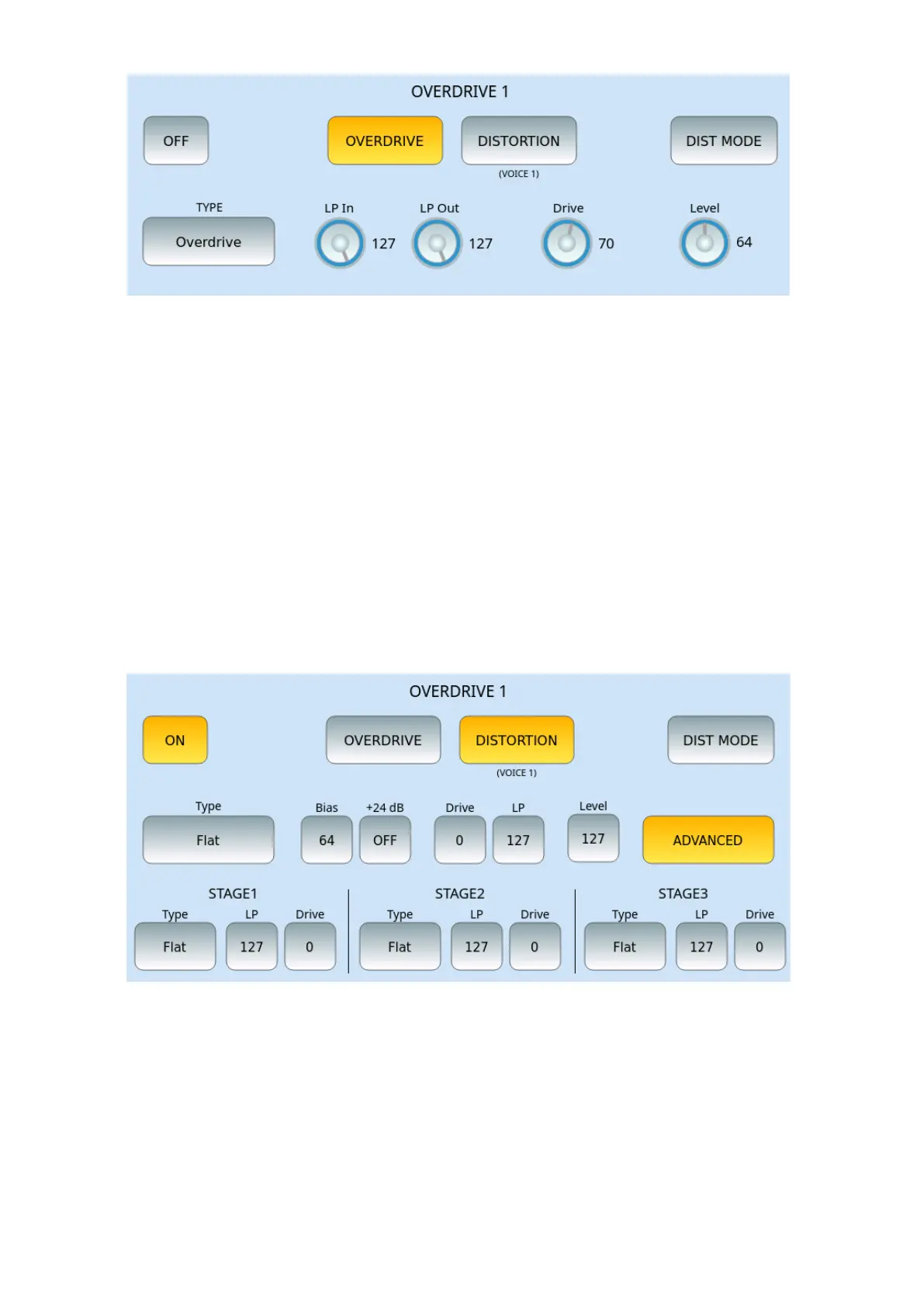

OVERDRIVE parameters:
• ON/OFF: Enable or disable.
• DIST MODE: Activate or not the Distorter mode.
• TYPE: The effect type of Overdrive.
Options: Distortion1, Distortion2, Distortion3, Fuzz1, Fuzz2, Tube1, Tube2, Rectifier,
Asymmetrical, Flat, Overdrive1, Overdrive2.
• LP In: Low Pass Filter input (value between 0 and 127).
• LP Out: Low Pass Filter Out (value between 0 and 127).
• Drive: Sets the intensity of the distortion effect. Higher values will increase the level of
distortion.
• Level: Sets the output level of the distorted sound. Higher values will increase
distortion. A value of 0 disables the distortion effect.
DISTORTION parameters:
• ON/OFF: Enable or disable.
• DIST MODE: Activate or de activate the Distorter mode.
• TYPE: The effect type of Overdrive.
Options: Distortion1, Distortion2, Distortion3, Fuzz1, Fuzz2, Tube1, Tube2, Rectifier,
Asymmetrical, Flat, Overdrive1, Overdrive2.
• Bias: Value between 0 and 127.
• +24 dB: ON/OFF.
