• Configurable parameters: AC FILTER, RANGE, NULL and NULL VALUE
To Make a 2-Wire Resistance Measurement
Press to select the 2-wire resistance function.
• Ranges: 100Ω, 1 kΩ, 10 kΩ, 100 kΩ, 1 MΩ, 10 MΩ, 100 MΩ, 1 GΩ
• Configurable parameters: INTEGRATION, RANGE, OFFSET COMP, AUTO
ZERO, NULL, and NULL VALUE
To null–out the test lead resistance:
1 Connect one end of the test leads at the meter, and short the probe ends together.
2 Press null.
3 Connect the probe ends to the test circuit, and measure the corrected resistance value.
To Make a 4-wire Resistance Measurement
Press to select the 4-wire resistance function.
• Ranges: 100Ω, 1 kΩ, 10 kΩ, 100 kΩ, 1 MΩ, 10 MΩ, 100 MΩ, 1 GΩ

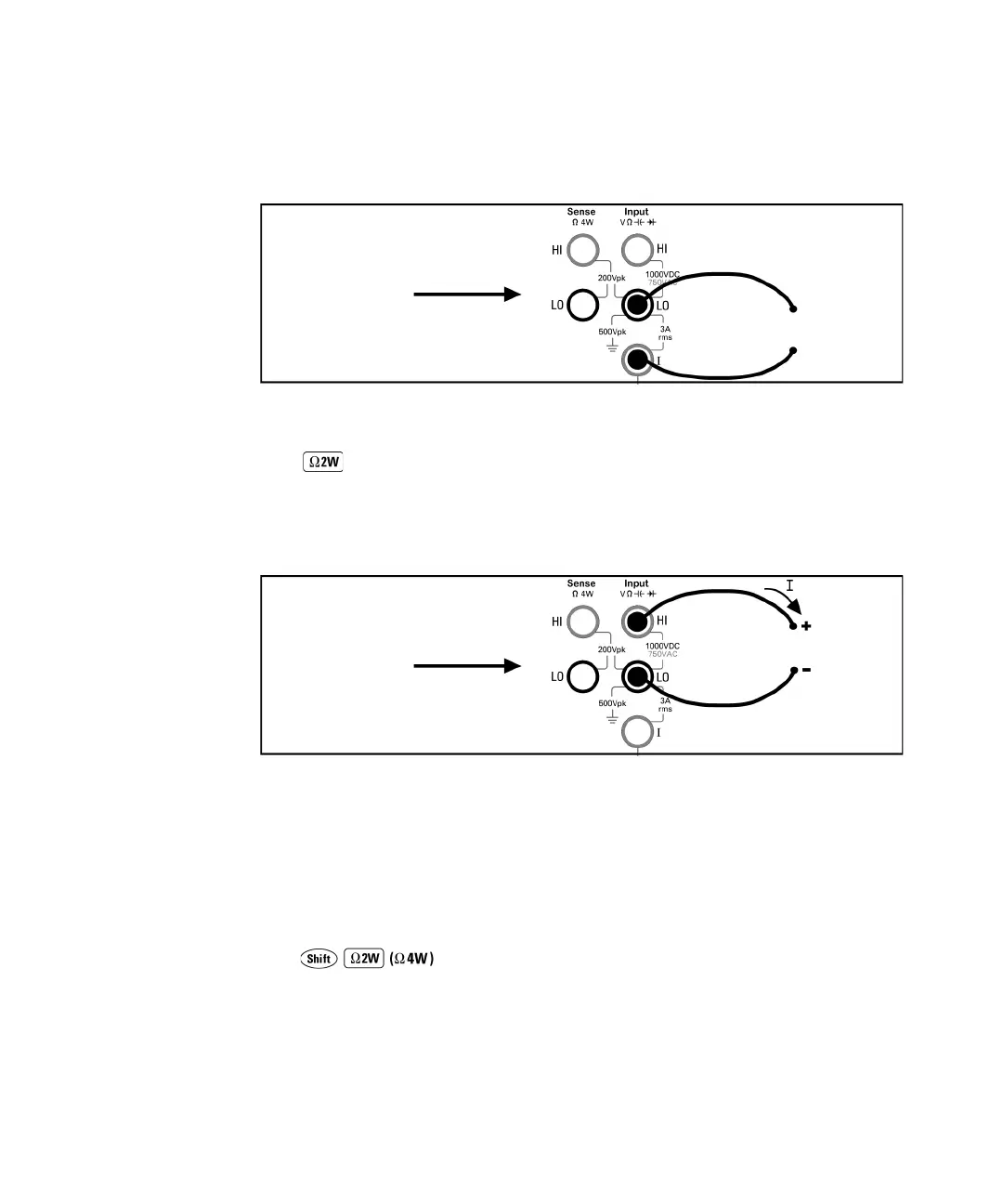

Connect test leads as shown:
AC Current
Connect test leads as shown:
Resistance
