• Configurable parameters: GATE TIME, RANGE, AC FILTER, NULL and NULL
VALUE
To Measure Capacitance
Press to select the capacitance function.
• Ranges: 1 nF, 10 nF, 100 nF, 1 mF, 10 mF
• Configurable parameters: RANGE, NULL, and NULL VALUE
To null–out the test lead capacitance:
1 Disconnect the + lead’s probe end from the test circuit, and leave open.
2 Press null.
3 Reconnect the + lead’s probe end to the test circuit, and measure the corrected
capacitance value.
To Make a 2-Wire Temperature Measurement
Press to select the temperature function. Then press and select
RTD-2W or THERMISTOR-2W from the menu.
• Probe types: 2.2 kΩ, 5 kΩ, 10 kΩ thermistors; 0.00385/°C RTD

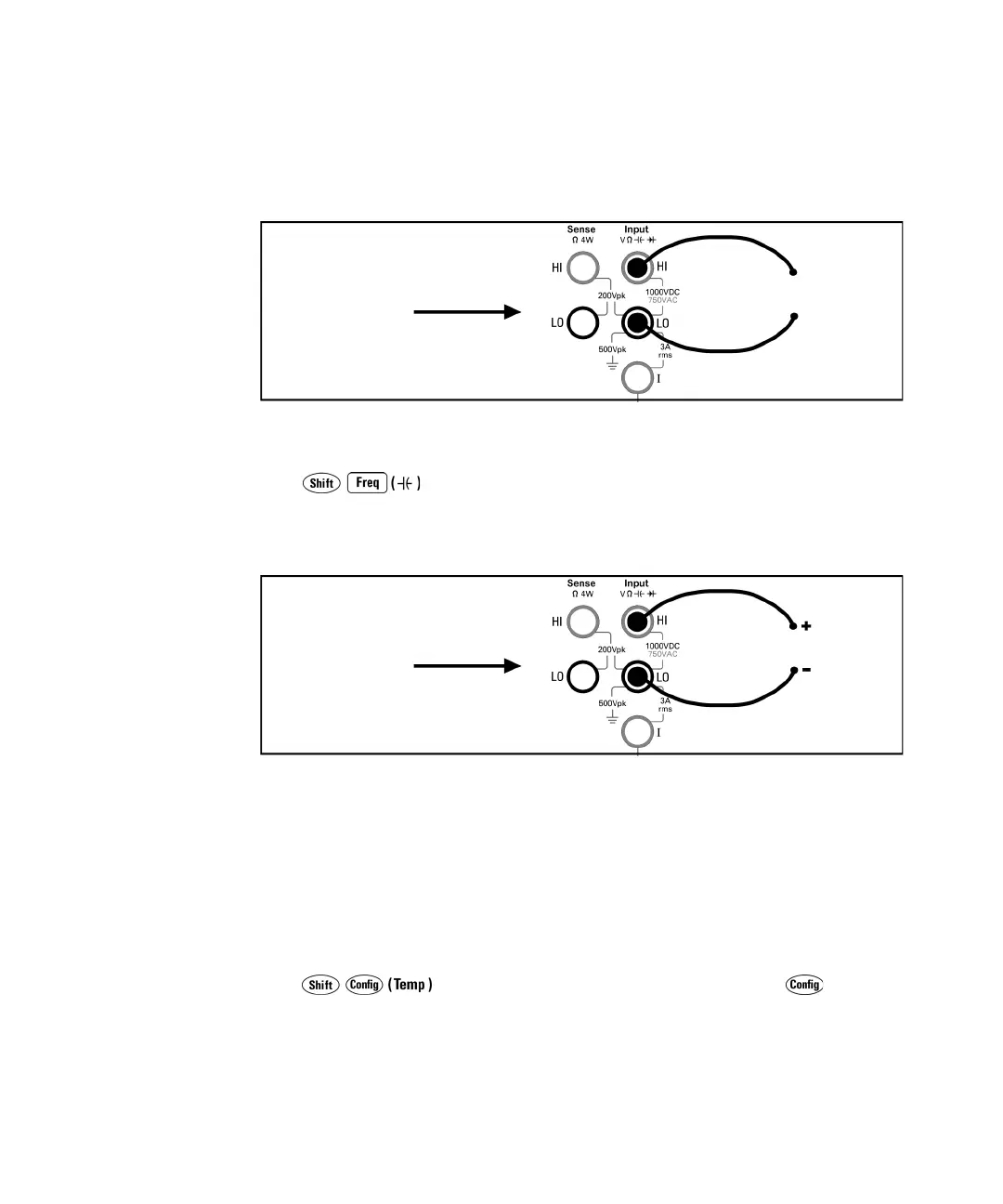

Connect test leads as shown:
AC Signal
Connect test leads as shown:
Capacitance
