38 34410A/11A/L4411A User’s Guide
2 Features and Functions
Front Panel Features (34410A/11A)
Front Panel Display
The Keysight 34410A/11A provides a two–line, alphanumeric display, with annunciators to
indicate certain non–default instrument states.
Displayed Messages
While taking measurements, the primary display line shows the current reading, with units
(for example: “-0.001,02 VDC”). For some functions the second display line can be
enabled to display a secondary measurement.
When a menu is open (for example, to configure a measurement), the primary display line
indicates the menu, or the parameter to be set or selected, while the second line displays
the selections, or a value to be set.
The second line also displays momentary messages to convey instrument state changes.
Self–Guiding Menus
The Keysight 34410A/11A provides context–sensitive menus to configure measurements
and other functions. The following general guidelines apply to menu operations.

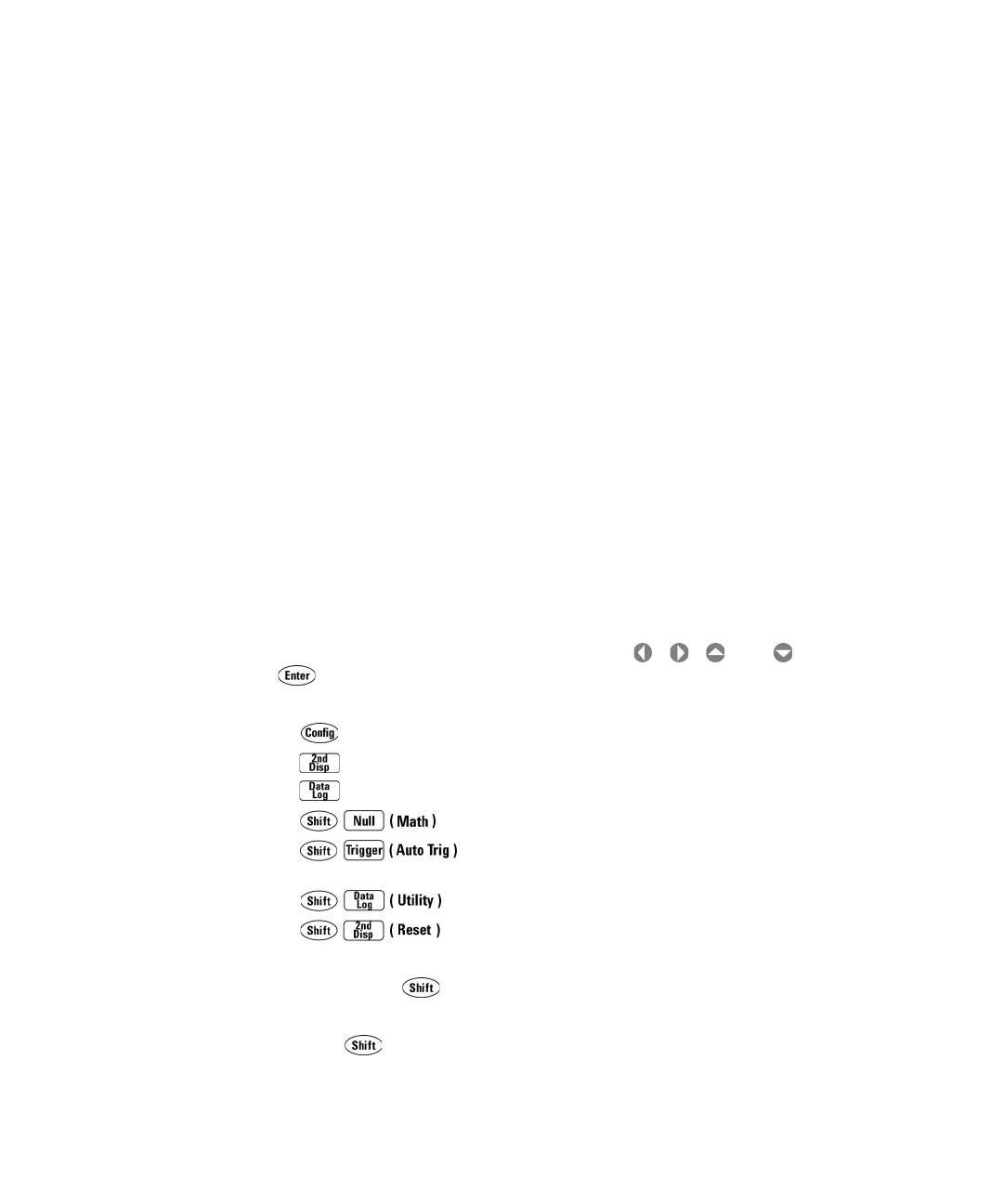

• In this guide, “navigation keypad” refers to the
, , , and keys, and the
key.
• Several keys (or shifted key sequences) open a menu. These include:
• to configure the currently selected measurement function.
• to select a secondary measurement for the second display line.
• to set up and use the data logger function.
•
to turn on and select the math functions.
•
to return the multimeter to auto trigger mode, enable
reading hold, or select various triggering options.
•
to configure utility options or the remote interface.
•
to reset the multimeter to its reset state (equivalent to the
*RST command in SCPI).
• When you press
, the Shift annunciator is lit. It toggles on and off.
• If the multimeter is in the remote interface mode (Remote annunciator is lit),
pressing
(Local) once returns the multimeter to local (front panel) operation.
