100 6000 X-Series Oscilloscopes Service Guide
5 Replacing Assemblies
To remove the front bezel assembly
1 Remove the bezel from the front deck.
The bezel is secured to front deck by molded-in retaining clips located around
the perimeter of the bezel. Gently pry these outward (either by hand or using a
flat head screwdriver). Working your way around the bezel releasing the clips
gently.

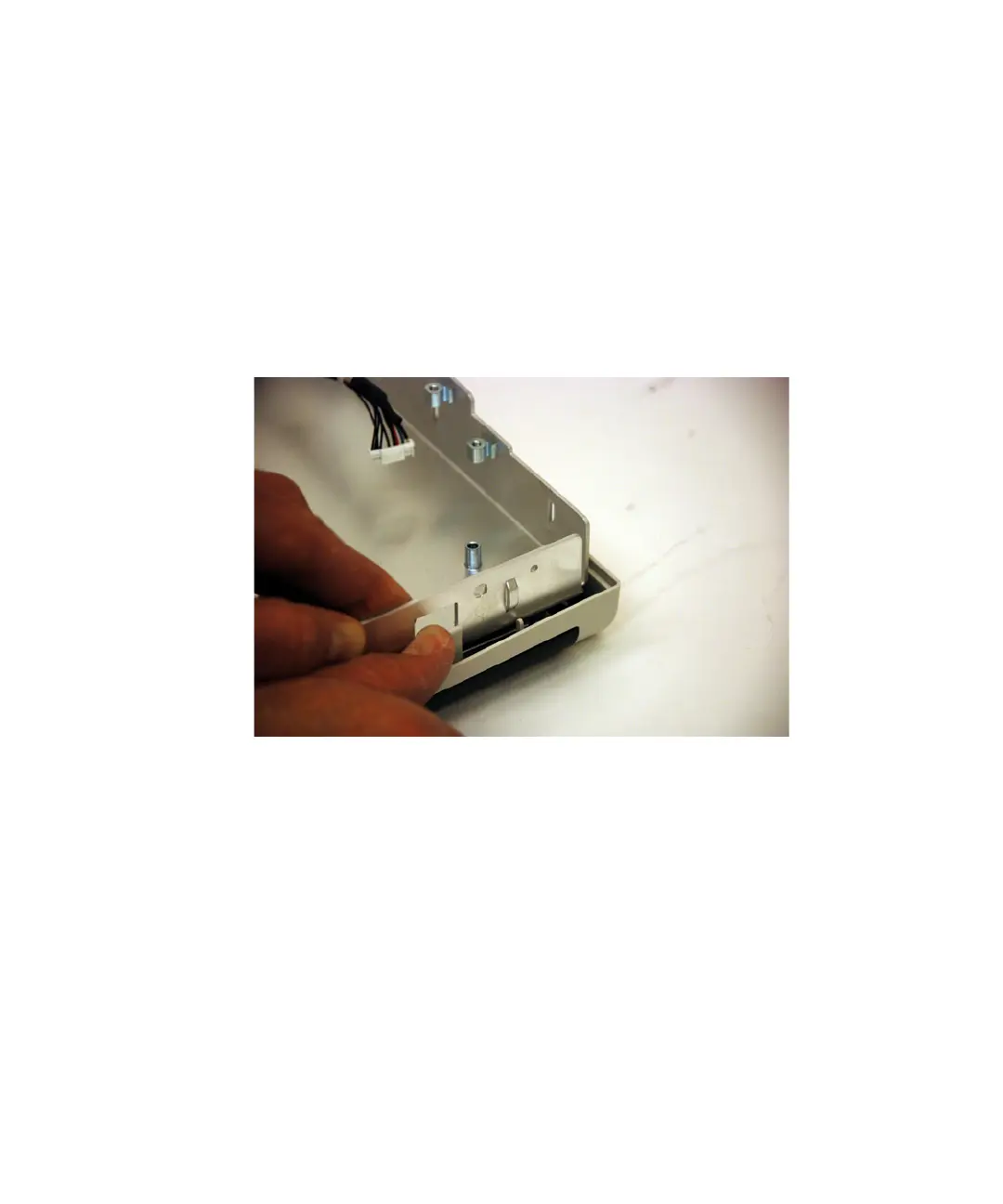

Figure 33 Removing the bezel
