96 6000 X-Series Oscilloscopes Service Guide
5 Replacing Assemblies
2 Disconnect display power, display video, and keyboard cables. Note locations
for re-connection.
The keyboard cable connector has a latch that must be flipped up before you
can disconnect the cable.

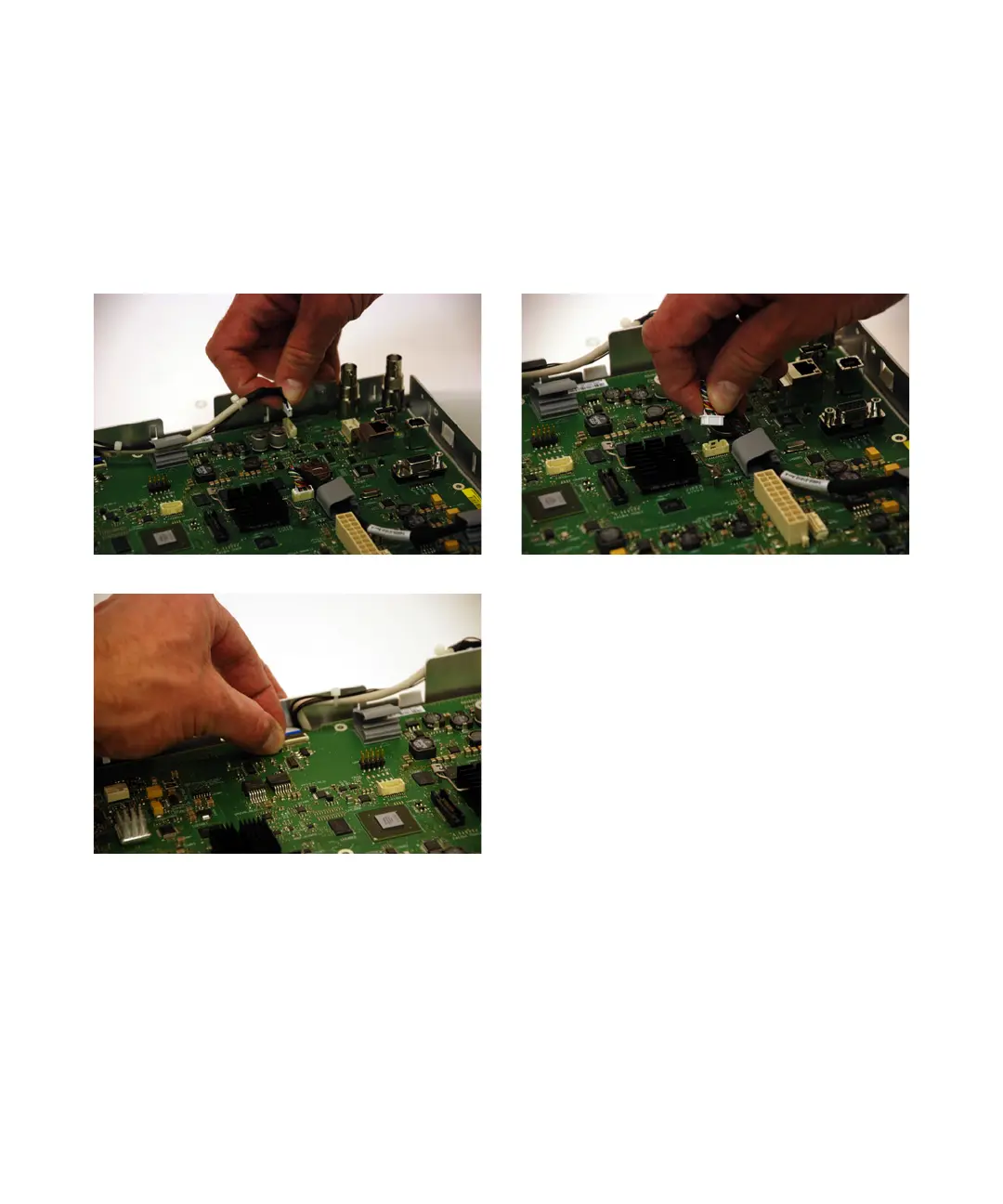

Figure 29 Removing cables from power board to other boards
