Keysight Technologies InfiniiVision 6000 X Series

Replacing Assemblies 5
6000 X-Series Oscilloscopes Service Guide 89

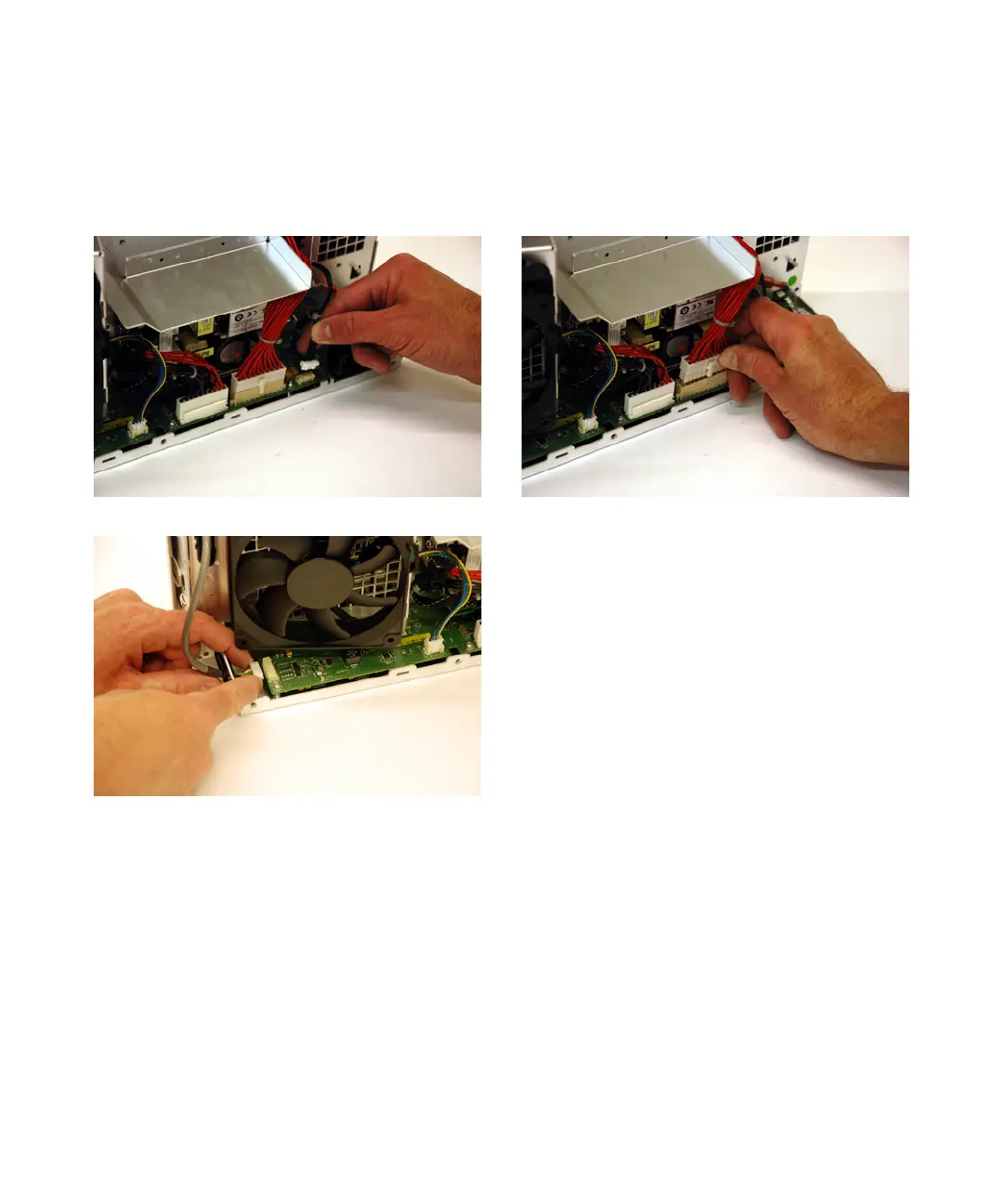

4 Disconnect the acquisition board control cable, the acquisition board power
cable, and the probe power cable. Note cable locations for re-assembly.
Figure 22 Removing cables from power board to other boards
