Replacing Assemblies 5
6000 X-Series Oscilloscopes Service Guide 91
To remove the power supply shield
1 To remove the power supply shield, locate and remove using a TORX T10 driver
the two screws securing the shield to the rear deck.
2 Once the screws have been removed, carefully remove the power supply cover
by lifting the cover up and off retaining tabs on rear deck.

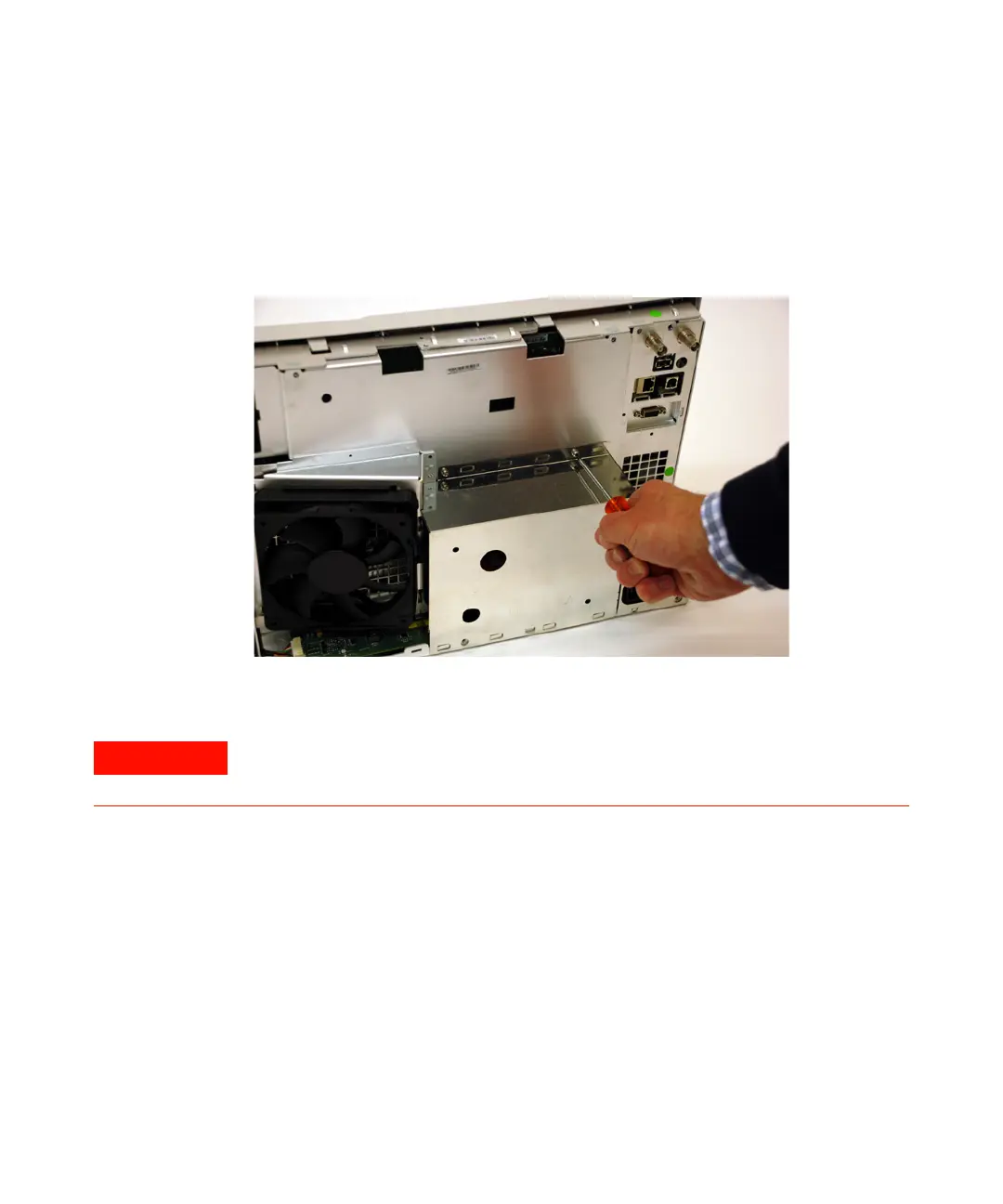

Figure 24 Removing the power supply shield
Thin sheet metal parts may have sharp edges. Handle with care to avoid injury.
