Keysight Technologies InfiniiVision 6000 X Series

106 6000 X-Series Oscilloscopes Service Guide
5 Replacing Assemblies

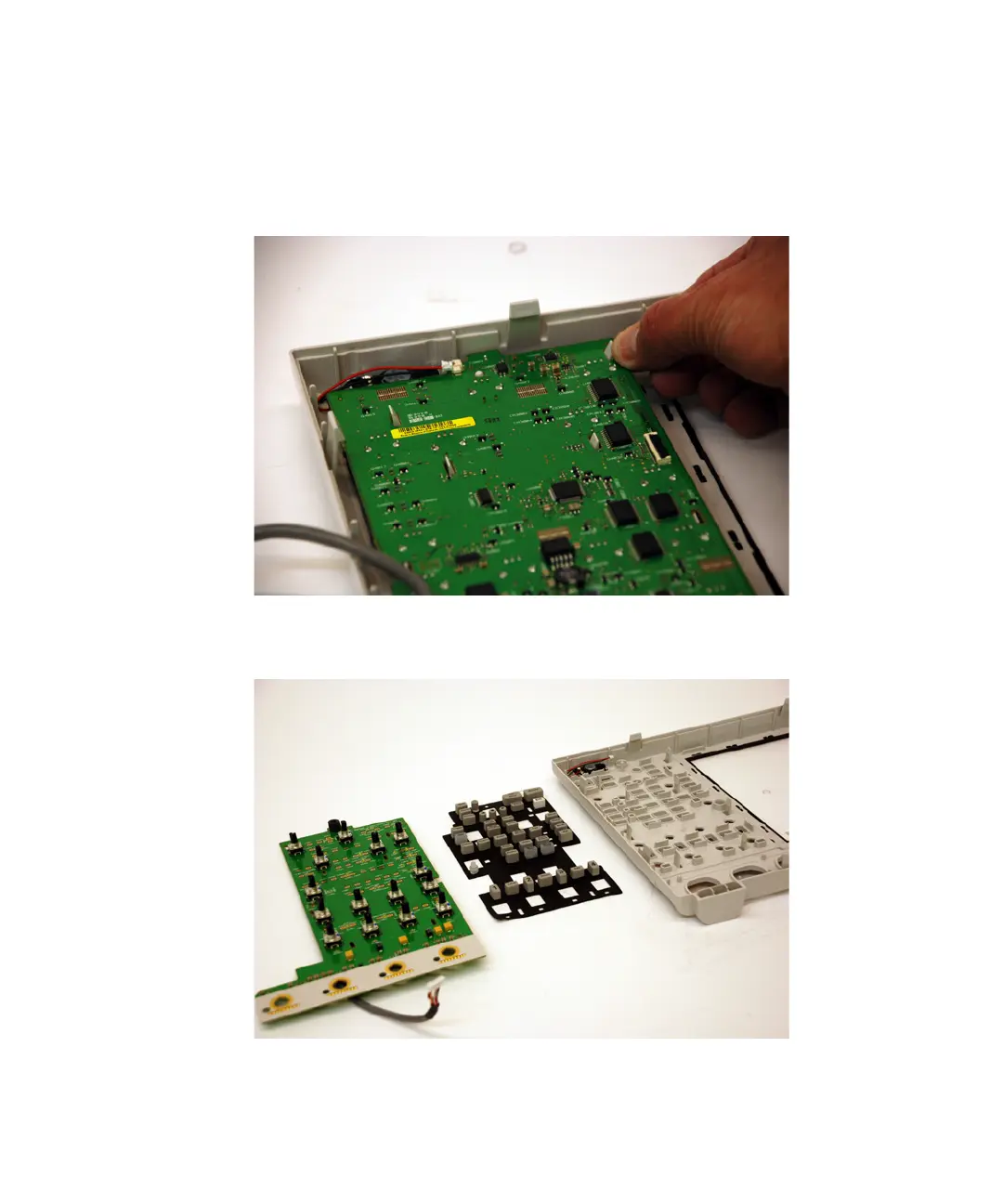

3 To separate the keyboard board from the bezel, carefully pull back locking tabs
that secure it.
Figure 39 Removing the keyboard
Figure 40 Keyboard and keypad removed
