118 6000 X-Series Oscilloscopes Service Guide
6 Replaceable Parts
Exploded Views
The following exploded views provide a graphical representation of the
oscilloscope at the time this manual was released. Not all parts are shown. Your
parts may be slightly different than those shown. These views provide reference
designator numbers that map to those used in the parts list table in this chapter.

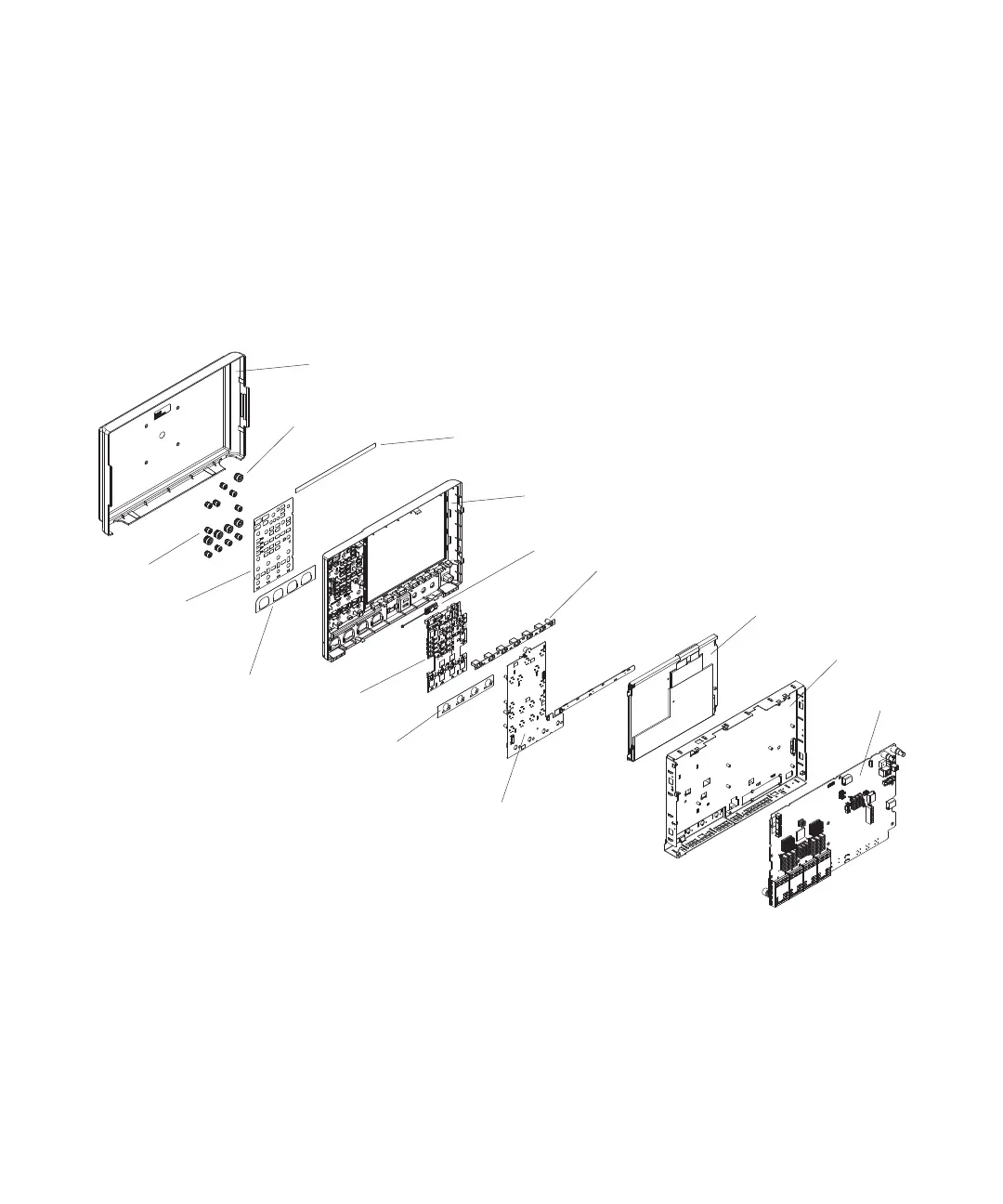

Figure 50 Exploded View 1 of 2
MP1
MP7
MP20
A2
MP11
MP5
MP8
MP6
MP3
A1
A5
MP9
MP2
MP4
MP10
