2 Carefully slide fan assembly (fan and fan mount) to the right, then lift away from
rear deck.
Note, fan mount is soft and can be damaged by sharp sheet metal edges. Take
care that the fan power cable is not damaged when pulling across sheet metal
edges.

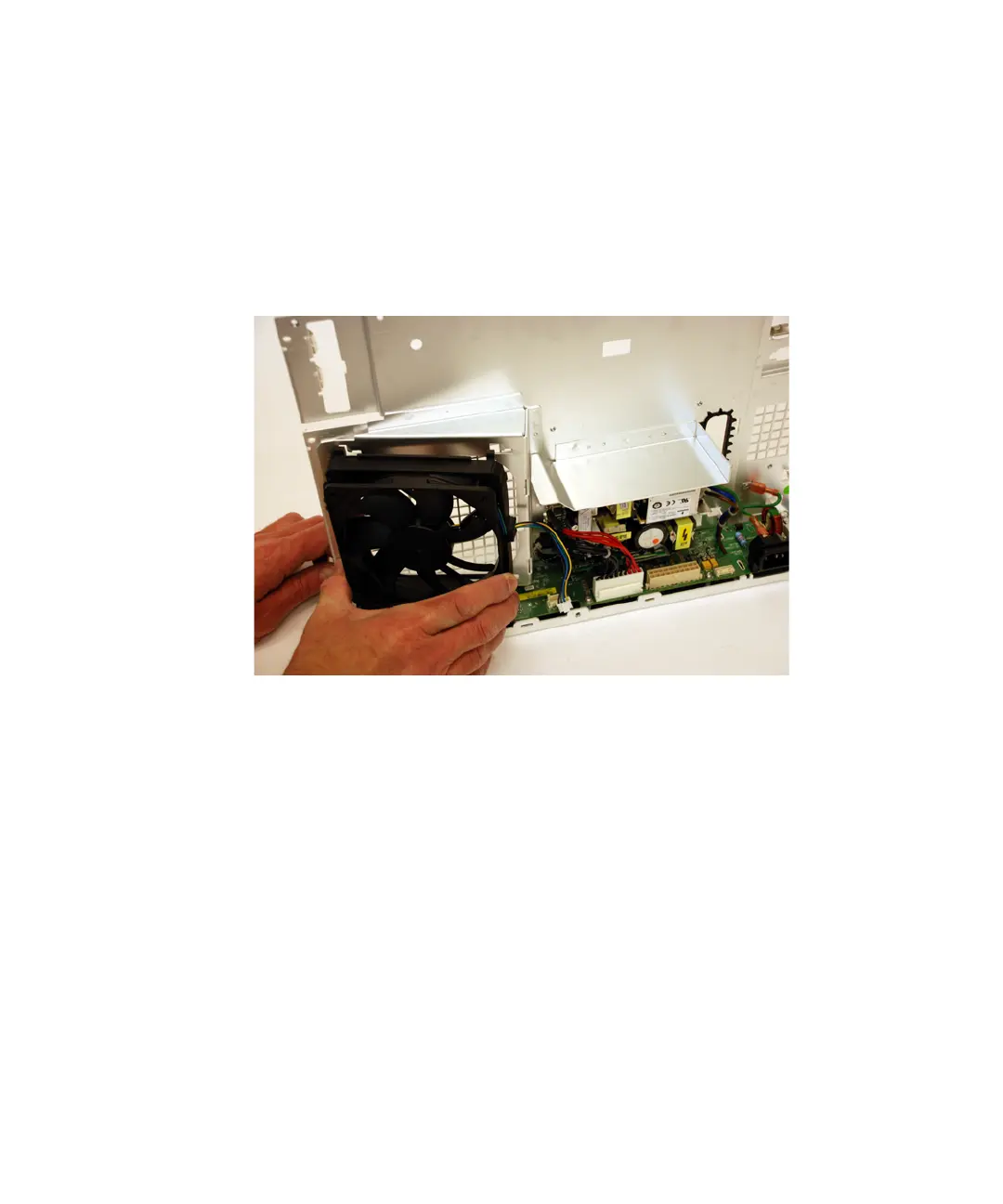

Figure 44 Removing fan assembly
