Keysight Technologies InfiniiVision 6000 X Series

104 6000 X-Series Oscilloscopes Service Guide
5 Replacing Assemblies
To remove the keyboard and keypad
1 Remove the softkey board cable from the keyboard board.
Slide the connector clamp toward the softkey board; then, slide the ribbon
cable out.

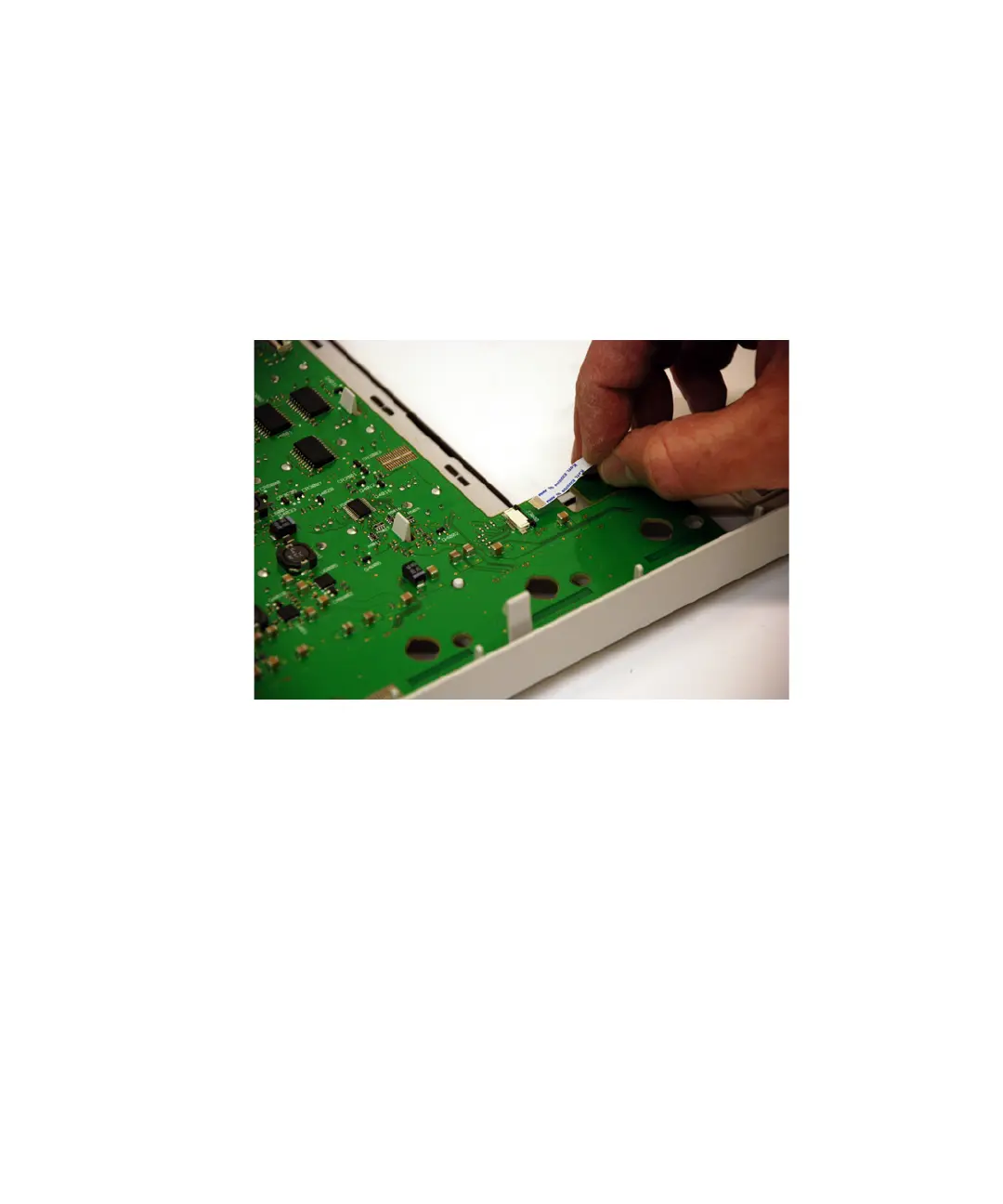

Figure 37 Disconnecting the softkey board cable
